Product Details

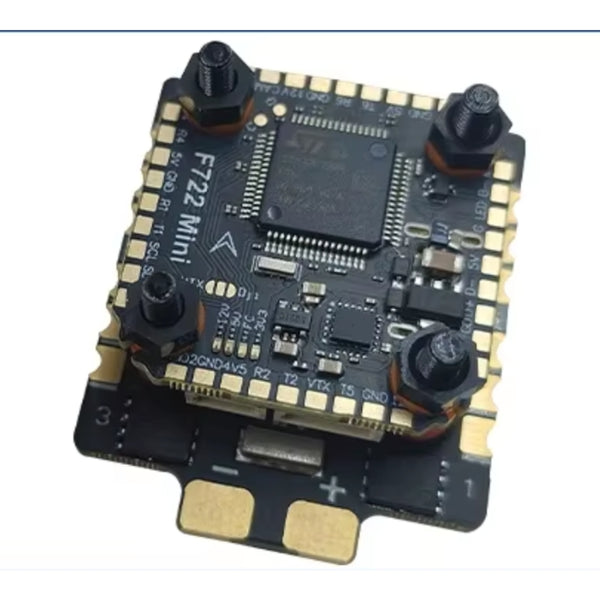

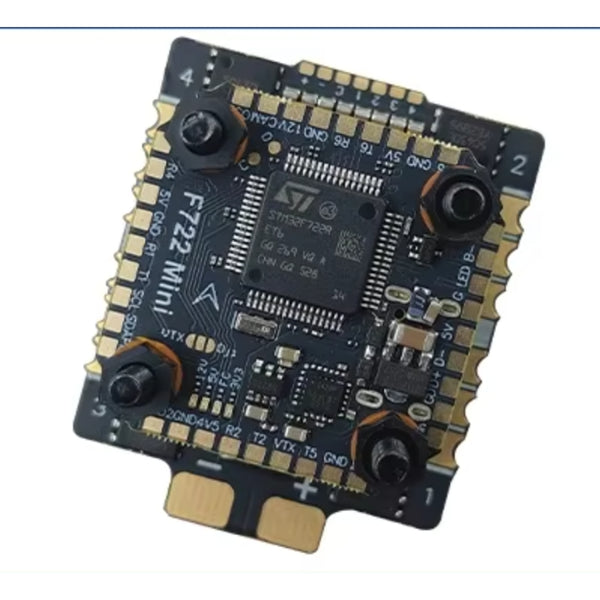

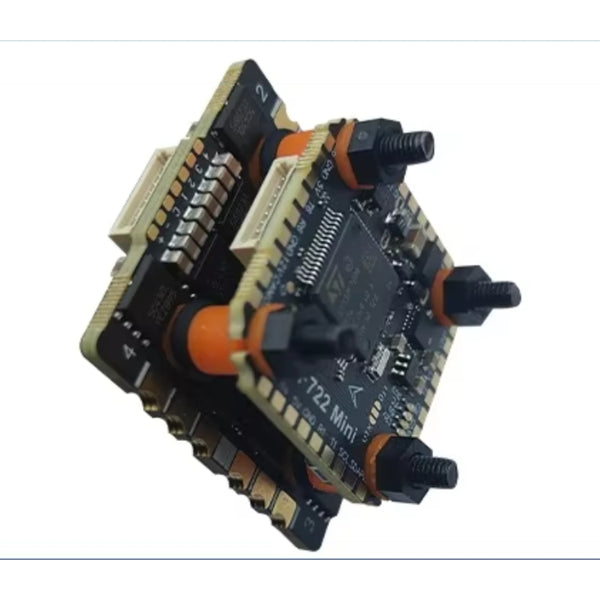

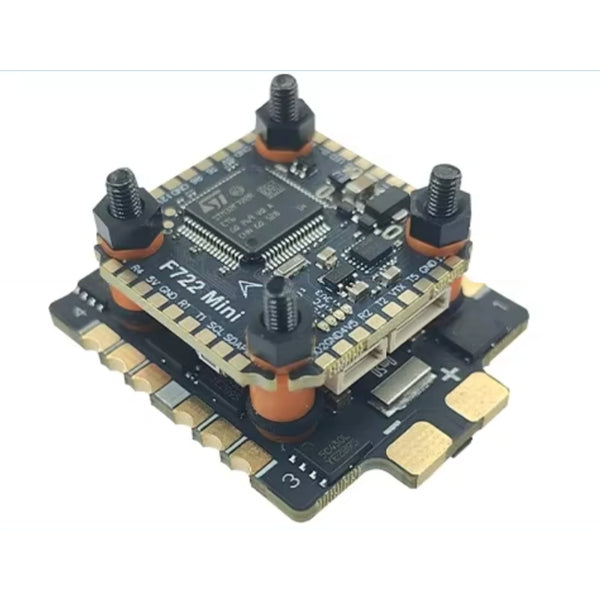

The DAKEFPV F7 MINI Flight Stack is a premium, space-saving electronic powerhouse engineered for high-performance sub-miniature and micro FPV drones. Delivering top-tier processing power and massive electrical output in an ultra-compact footprint, this combo matches a high-speed F7 processor with a formidable 70A 4-in-1 electronic speed controller. It serves as the ultimate high-current electronic spine for aggressive freestyle builds, tight cinewhoops, or racing rigs demanding clean wiring and extreme responsive authority.
Checkout all our Stacks Collection.
Features
-
Ultra-compact build profile engineered specifically for 3-inch, 4-inch, and high-power 5-inch tight drone geometries.
-
Premium high-speed F7 processor ensures ultra-low loop times, seamless filtering, and highly responsive flight management.
-
Massively rated 70A 4-in-1 speed controller manages high-power setups easily during aggressive punch-outs.
-
Complete integration out of the box for major high-definition digital video transmitters including DJI, Vista, and Walksnail.
-
Onboard digital barometer offers accurate altitude maintenance and smooth stable performance in challenging draft conditions.
Specifications
-
Mounting Hole Pattern: 20.5mm × 20.5mm
-
Input Voltage Support: 3S–6S LiPo
-
Continuous ESC Current: 70A
-
Peak ESC Current: 80A
-
ESC Firmware: BLHeli_S
-
Flight Controller Processor: F722 MCU
-
Barometer Model: SPL06-001
-
Flight Controller Firmware Compatibility: Betaflight / INAV
-
BEC Output: 5V, 2.5A
-
Peripheral Hardware Onboard: Onboard LED Support, Buzzer Support
-
Total Product Package Weight: 130g
Package Includes
-
1 × DAKEFPV F7 MINI Flight Controller
-
1 × DAKEFPV 70A Mini 4-in-1 ESC
-
1 × Low ESR Capacitor
-
1 × High-Gauge Power Cable with XT60 Connector
-
1 × Multi-Pin Peripheral Connection Cable Set
-
1 × Vibration-Dampening Silicon Grommet & Mounting Hardware Set
