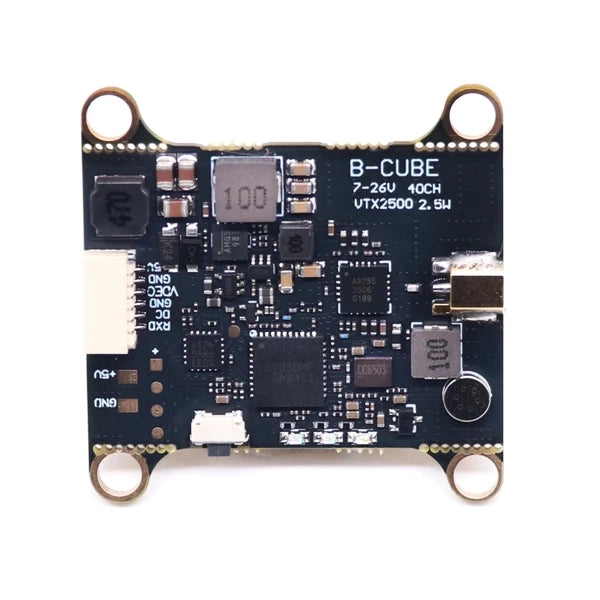

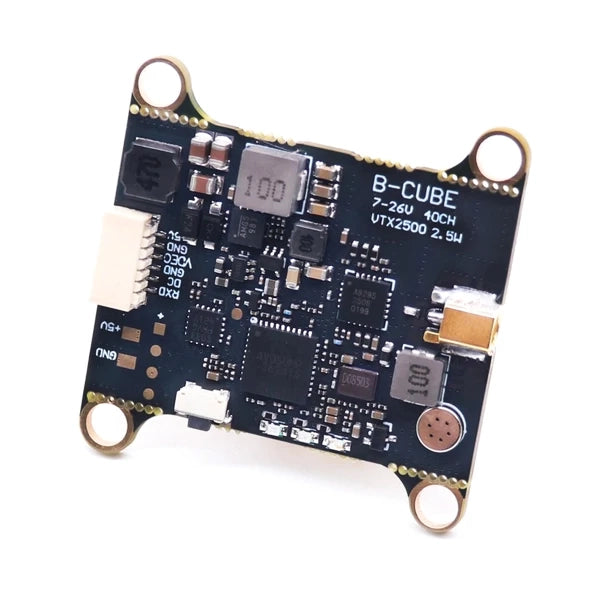

(PRE-ORDER) B-CUBE 5.8GHZ VTX2500 2.5W Analog Video Transmitter VTX

N.B: Attention: Before powering on, please make sure to reliably connect the antenna, otherwise it will burn when powered on.

VTX2500 will generate heat during use, which is normal. Please do not touch with your hands to avoid burns.The higher the power, the more heat it generates. The PCB uses high-end customized materials, and high temperatures will not burn out the circuit board. VTX2500 should be kept away from the flight control and in a ventilated position on the aircraft.The heat dissipation module should face upwards and be in a ventilated position in order to continuously dissipate heat.

Features:

Support manual adjustment of power and frequency, support IRC protocol OSD parameter adjustment.

• Short press to adjust channel (corresponding to blue light, 1-8, a total of 8 times)

• Long press for 2 seconds to adjust the group (corresponding to green light, A, B, E, F, R, a total of 5 times)

• Press Press for 5 seconds to adjust the power (corresponding to the red light, a total of 5 times)

• Long press for more than 10 seconds to open 11 prohibited USA channels.

• Default does not output prohibited USA channels: 5705,5685,5665,5885,5905,5880,5658,5695,5732,5880,5917

Specifications:

• Default output: 5865MHZ (5.865GHZ)/2.5W
• Frequency: 5645-5945MHZ

• Input voltage: 7-26V

• Output voltage: 5V/1A

• Channel : 40CH

• Transmission power: PIT/25MW/200/400/800/1600MW/2.5W

• Boundary dimension: 36 * 36MM

• Screw hole: 30.5 * 30.5MM

• Screw aperture: 3MM

• Weight: 7.3g

Package Includes:

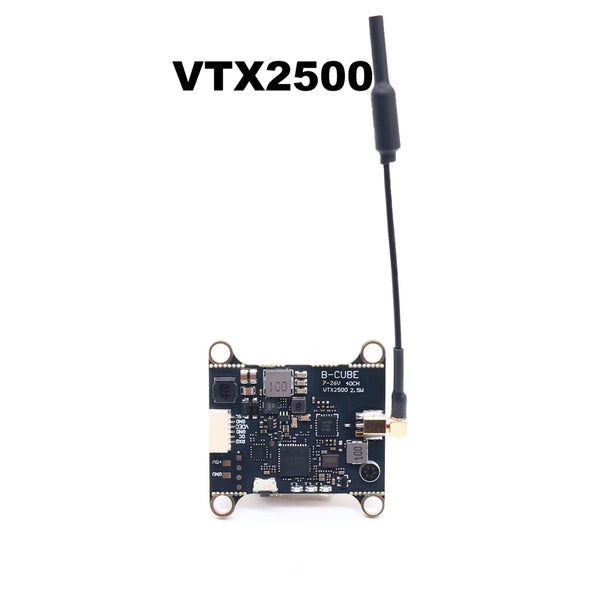

• VTX2500 Board * 1

• Shock-absorbing ball *4

• Fixed Nylon Column *4

• Heat dissipation module *1

• 5.8G 5DB antenna *1

• 6P * 1.0MM plug cable * 1
