Product Details

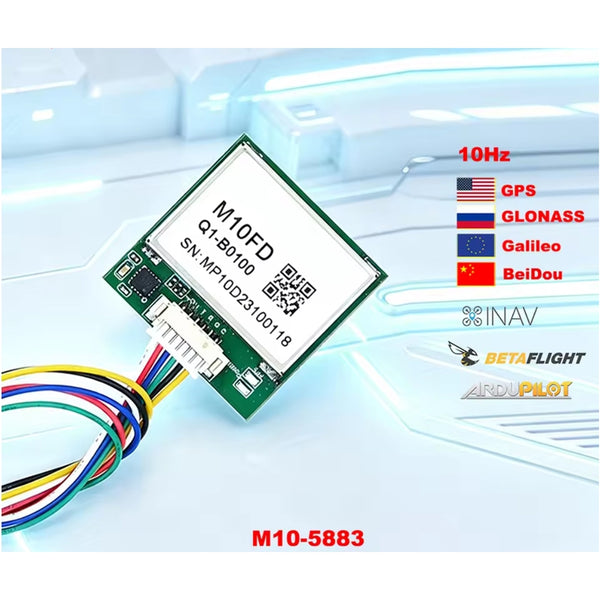

M10FD GNSS module is powered by UBX‑M10050‑KB chip, built on UBX‑M10 standard‑precision GNSS platform. It supports concurrent reception of GPS, GLONASS, Galileo and BeiDou four major satellite systems, capturing over 50 satellites to select optimal signals for better positioning performance. Outstanding accuracy is achieved even in tough environments like deep urban canyons.
Features:
-
Benefiting from UBX Super‑S (Super‑Signal) technology, it delivers excellent RF sensitivity and improves dynamic positioning accuracy with small antennas or under non‑line‑of‑sight conditions. Extremely low power consumption in continuous tracking mode guarantees long battery runtime for battery‑powered devices without sacrificing GNSS performance.
-
It outputs both NMEA and UBX protocols. Default positioning update rate is 10 Hz, max up to 25 Hz. Fitted with a 25×25×4 mm high‑gain antenna with omnidirectional radiation pattern for flexible installation. On‑board QMC5883L magnetometer and programmable flash memory expand application possibilities.
- Perfectly compatible with Ardupilot, INAV, Betaflight, Pixhawk, APM and other mainstream flight controllers. Widely used for FPV drones, robots, boats, speedometers and more. Greatly upgraded performance compared with classic M8N module. Worth a try!
Package Includes:

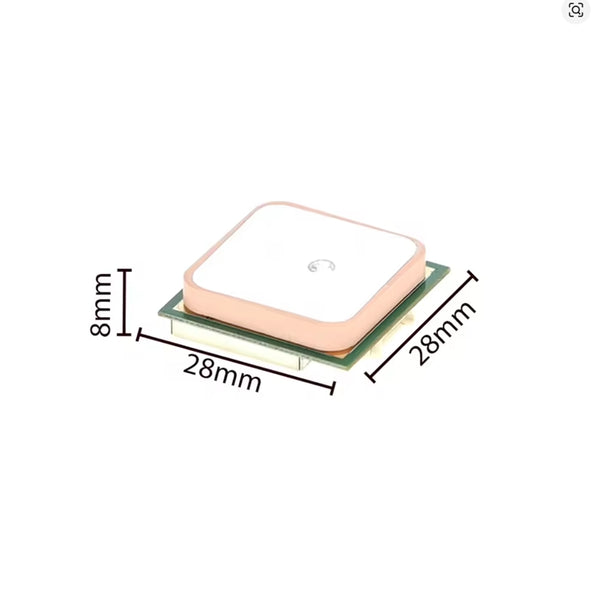

- 1 x M10FD GNSS with HMC5883 Compass GPS Module - 28x28x8mm
