Product Details

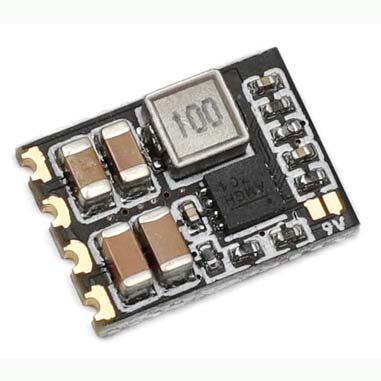

Great tiny BEC from Matek to power your external accessories,
FEATURES
- High Efficiency Synchronous Step-down regulator.
- Wide 2-8S (6-30V) Operating Input Range
- Continuous load current: 1.5 Amps (Max.2.5A 5s/minute)
- VOut 5V or 9V Adj. Default is 5V.
- VOut Load Regulation: 2%
- Standby current: <5mA
- Maximum Duty Cycle: 95%
- OCP Protection and Hiccup
- Thermal Shutdown
- Output Short-circuit tolerant (5 seconds/minute)
- Pins distance: 2.54mm
- Dimensions: 10x14x3mm
- Weight: 1g
INCLUDES
-
3x Matek 2-8S Micro 5V or 9V BEC
