Product Details

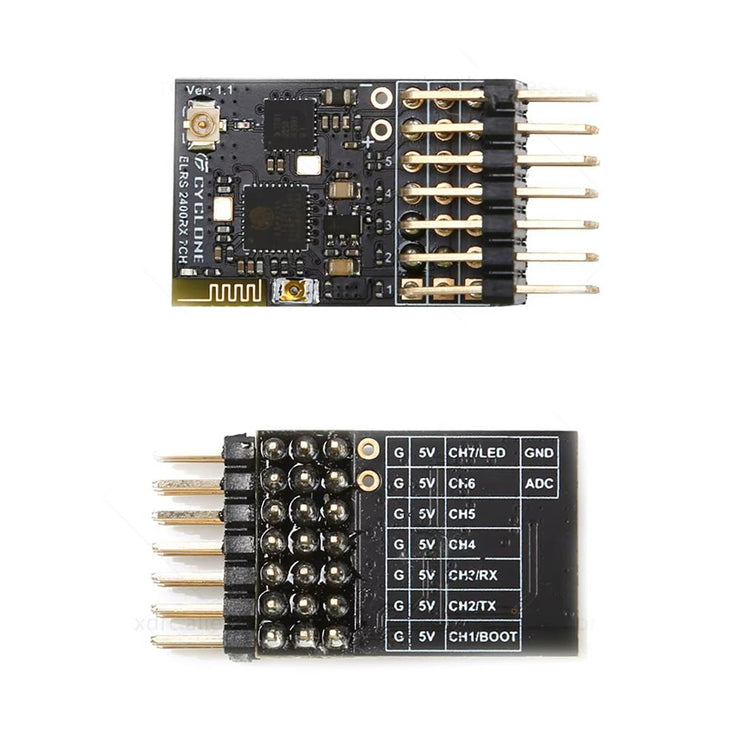

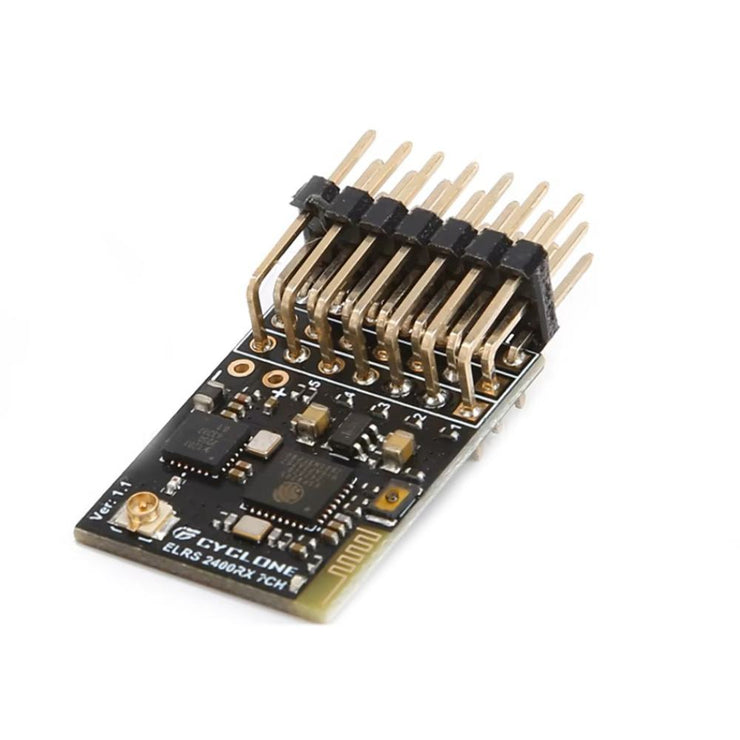

This ELRS 2.4G 7CH PWM Receiver is a compact, high-performance receiver designed for pilots who need both traditional PWM output and modern CRSF serial communication. Built around the ESP8285 MCU and SX1280/SX1281 RF chip, it supports ExpressLRS v3.2 firmware and offers seamless switching between PWM and CRSF modes without re-flashing!
Specifications:
- Protocol Support: ExpressLRS v3.2 (PWM & CRSF switchable)
- Channels: 7 PWM outputs or 1 CRSF serial output
- MCU: ESP8285 (Wi-Fi capable)
- RF Chip: SX1280 / SX1281 (2.4GHz LoRa)
- Input Voltage: 4.0–6.0V DC
- Size: approx. 18.5mm × 26mm
- Weight: approx. 3.5g

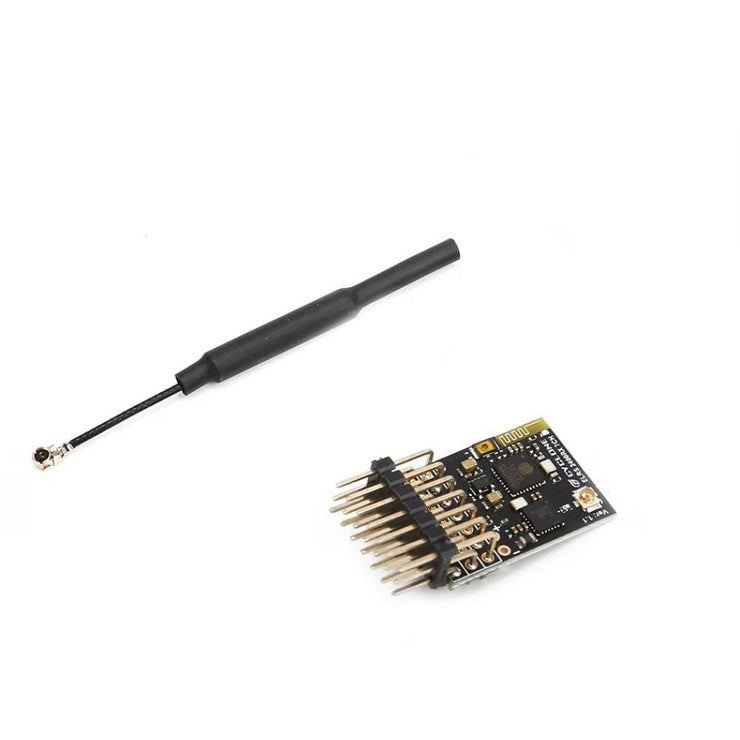

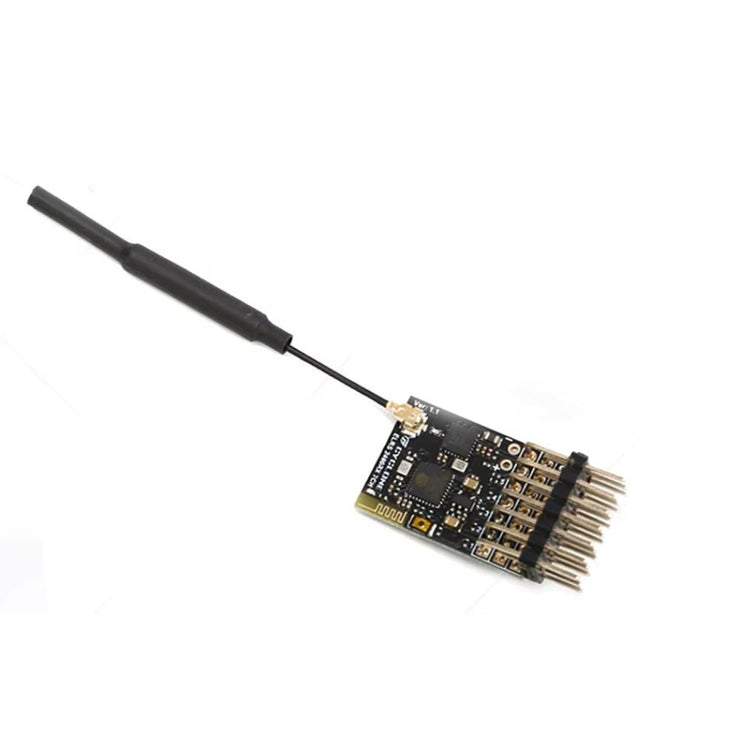

- Antenna Options: Copper tube or IPEX MHF+T
- Wi-Fi Config Access: Auto after 60 seconds or via Lua script
- Wi-Fi SSID: ExpressLRS RX
- Wi-Fi Password: expresslrs
Package Includes:
- 1 x ELRS 2.4G 7CH PWM Receiver
