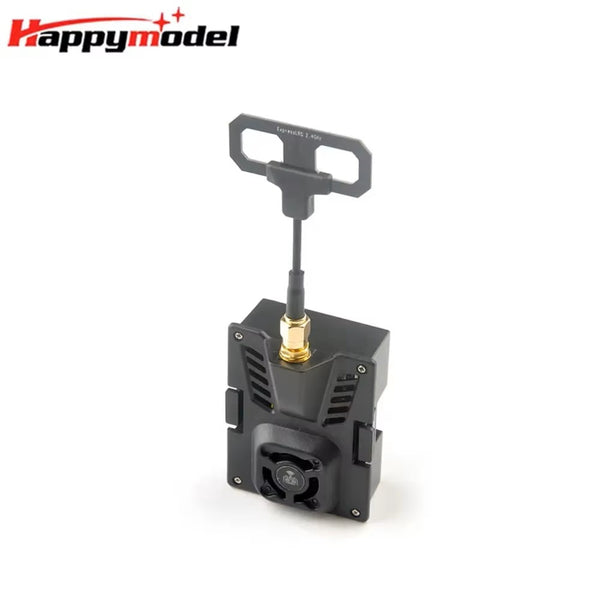

HappyModel ES24TX Pro 2.4Ghz 1000mw Micro ELRS Module

HappyModel ES24TX Pro 1000mW 2.4G ExpressLRS ELRS Micro TX Module with Cooling Fan RGB LED Module for RC Airplane FPV Drone

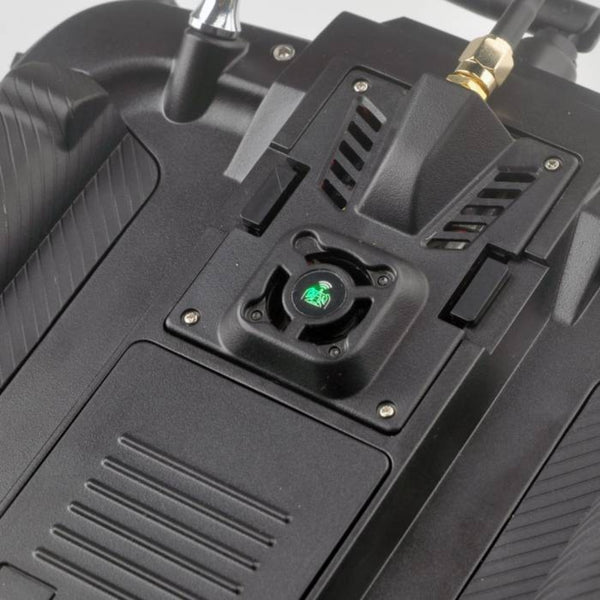

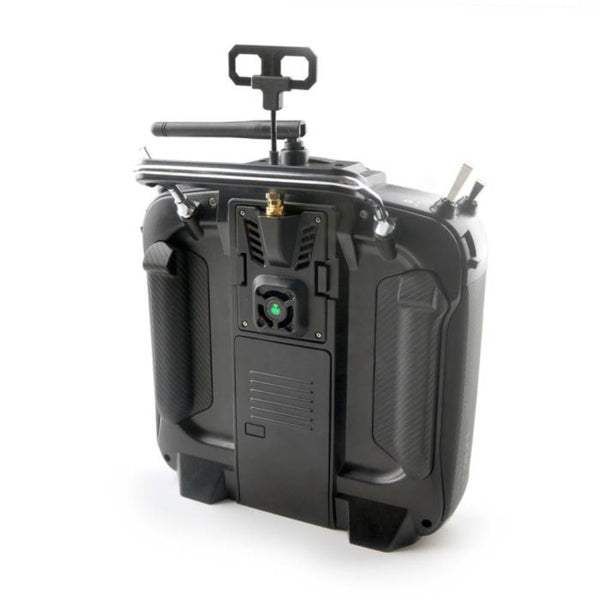

Max output up to 1000mw, reserved Cooling Fan and RGB LED module. This Micro TX module support most of the OpenTX radio transmitter that with Micro JR bay. And this time the ES24TX Pro module comes completely assembled before out of factory.

Check out all our Radios/Modules/Receivers/Accessories Collection.

Specifications:

• Regulatory Domain: ISM2400

• MCU:ESP32(main),ESP8285(aux,as espbackpack)

• RF chip: SX1281IMLTRT

• JR standard 5pin socket

• Frequency Range: 2400 MHz to 2500 MHz

• Maximum receive refresh rate: 500Hz

• Minimum receiver refresh rate: 25Hz

• RF Output Power: >30dBm

• Power supply voltage: 5v~10v

• Weight: 51gram(without antenna)

• Dimension: 70mm*49mm*32.5mm

• Antenna gain: 4.18dBi

• Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX

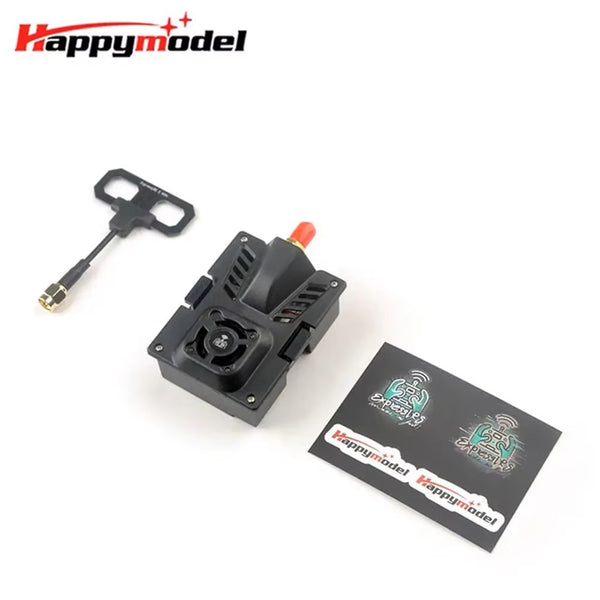

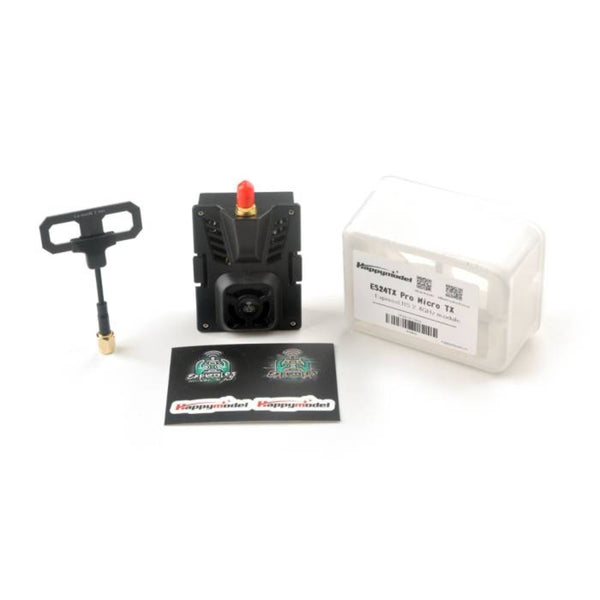

Package includes:

• 1 x HappyModel ES24TX Pro 2.4Ghz 1000mw ELRS Module
