Product Details

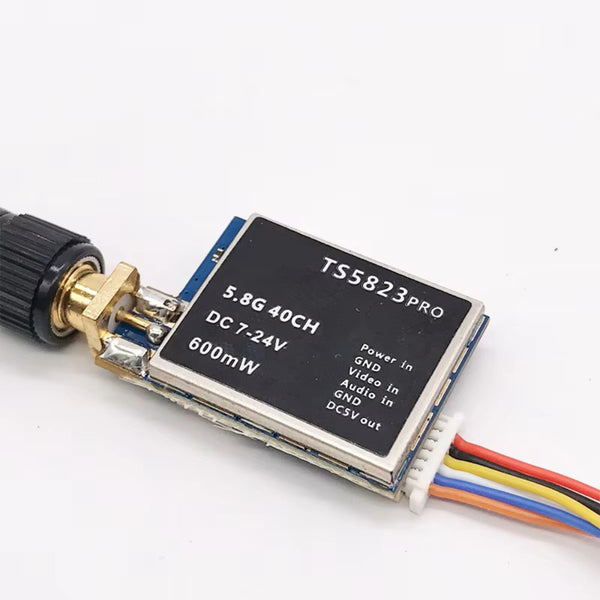

The TS5823L is an ultra-compact, lightweight 5.8GHz 600mW video transmitter designed for small multi-rotors and micro FPV aircraft setups. Featuring a push-button interface for easy channel switching, this transmitter provides reliable analog video transmission without requiring complex dip switch configurations.
Features:
-
5.8GHz 40-channel operation covering A, B, E, F, and R bands
-
Compact footprint and lightweight design suitable for small-scale FPV drones
-

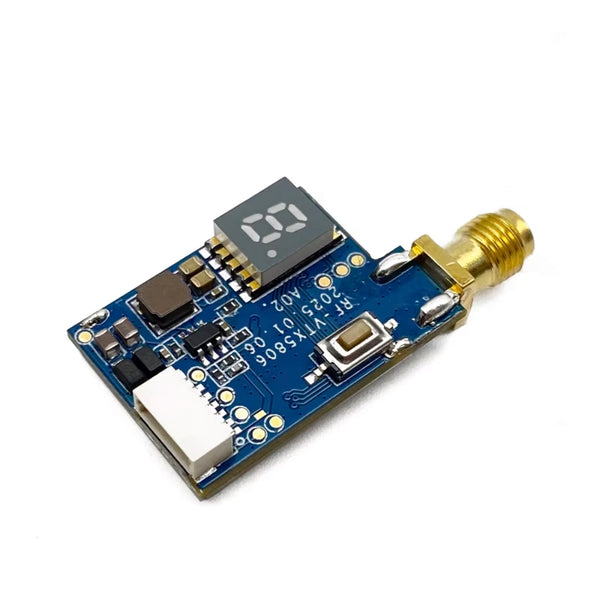

Single push-button interface for quick frequency and channel switching
-
600mW output power for stable video transmission
-
Wide operating voltage range supporting 7V to 24V input
Specifications:
-
Output Power: 600mW
-
Channels: 40CH
-
Video Format: NTSC / PAL
-
Output Impedance: 50 Ohm
-
Operating Voltage: 7V – 24V
-
Supply Current: 190mA
-
Video Input Level: 0.8 – 1.2 Vp-p
-
Video Input Impedance: 75 Ohm
-
Audio Input Level: 0.5 – 2.0 Vp-p
-
Audio Input Impedance: 10K Ohm
-
Audio Carrier Frequency: 6.5 MHz
-
Operating Temperature: -10°C to 85°C

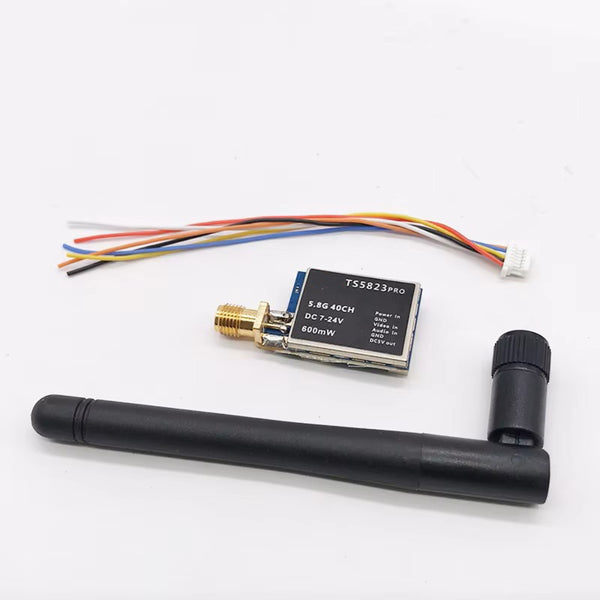

Package Includes:
-
1 x TS5823L 600mw 5.8GHz 48CH Analog VTX
-

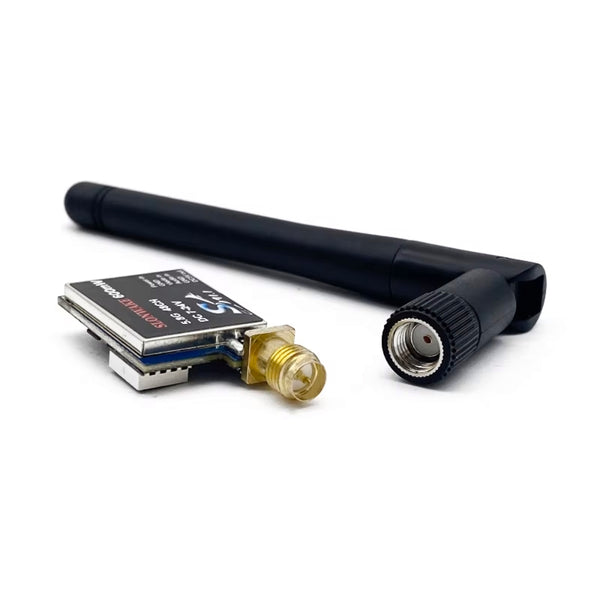

1 x Antenna
-
1 x Cable Harness
