Product Details

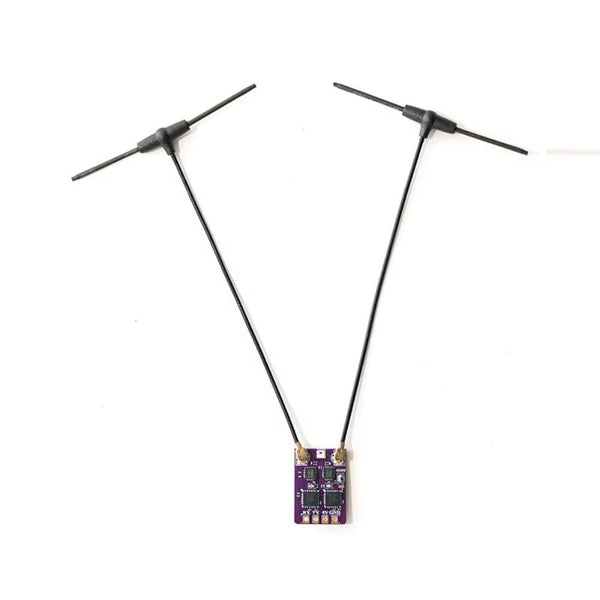

ELRS 2.4G Diversity Receiver is a new generation of true dual-antenna diversity receiver system based on the ExpressLRS open source project. ExpressLRS features long range operation, low latency, maximum 1000Hz refresh rate, and low price.

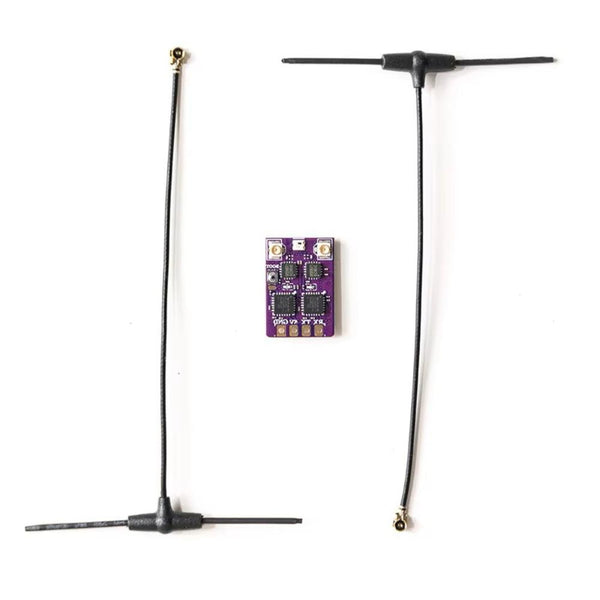

The ELRS 2.4G Diversity Receiver has a reasonable placement of dual antennas for wider signal reception and more stable connection than ordinary single antenna receiver systems. It uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes and the telemetry power is up to 100mW.
Features:
- 1: WIFI Upgrade firmware
- 2: ELRS open source project, remote control
- 3: Maximum refresh rate of 1000Hz
- 4: Two independent RF receiving links, true diversity receiver
- 5: The use of temperature-compensated crystal oscillator (TXCO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control
- 6: Built-in PA + LNA, up to 100mW telemetry power
Specifications
- size:20mm*14mm
- Werght :1.1g(RX only)

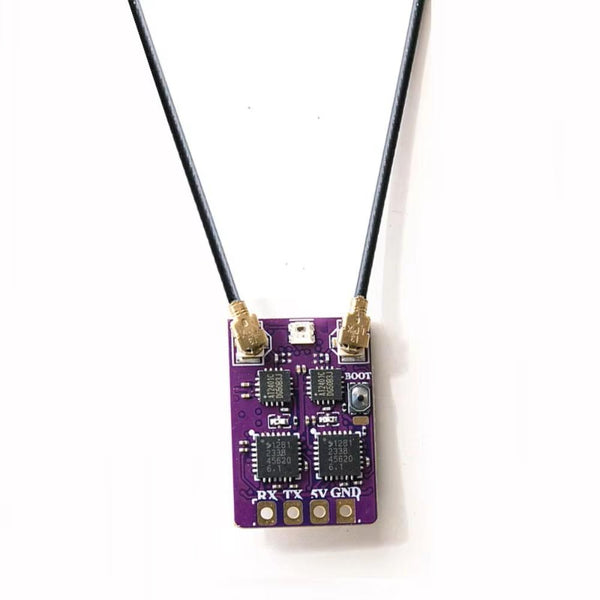

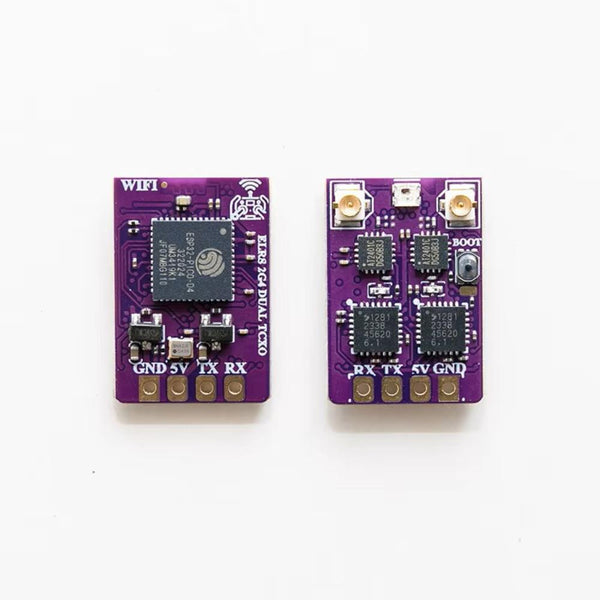

- Chips: ESP32-PICO-D4, SX1281
- Crystal Oscillator: TCXO
- Frequency Band: 2.4GHz ISM
- Refresh Rate:25Hz-1000Hz
- Input Voltage: 5V
- Antenna Connector: ipex1
- Indicator Light: RGB light
- TLM Power: 20
-
Firmware: HappyModel EP Dual 2.4GHz RX
FIRMWARE TIPS
- ELRS-R24-D: Enable “USE_DIVERSITY” (checked) when flashing in ExpressLRS configurator
- Firmware: HappyModel EP Dual 2.4GHz RX
- Firmware update via UART or WIFI

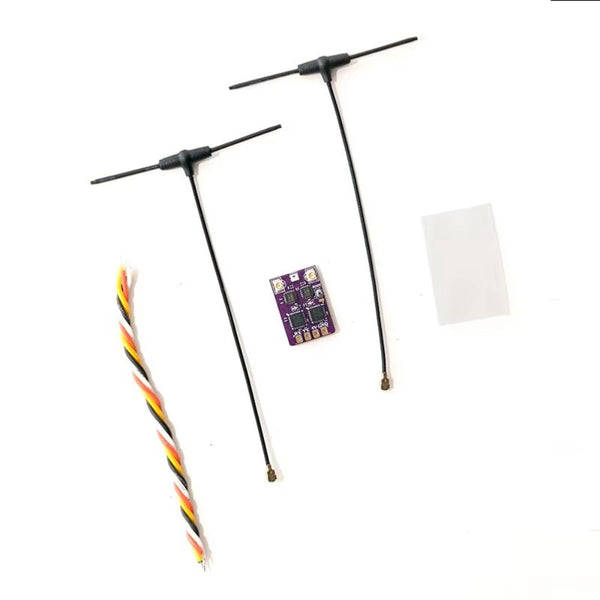

Package Includes:
- 1 x HM EP Dual 2.4GHz ExpressLRS Diversity Receiver
