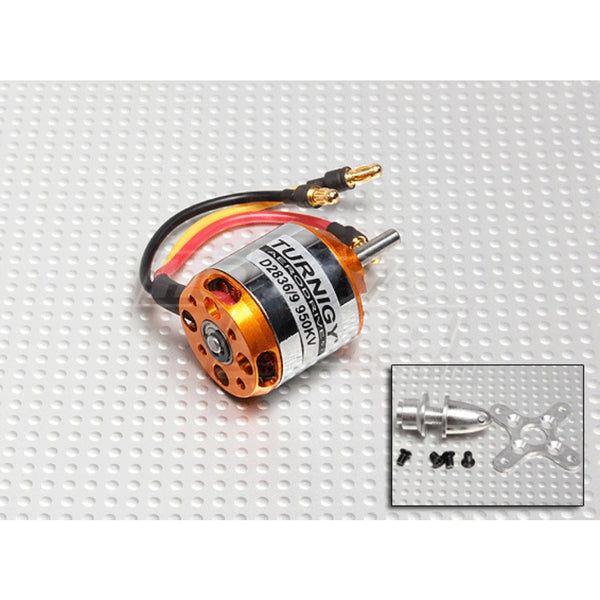

Product Details
The Turnigy D2836/9 950KV Brushless Outrunner Motor is a high-efficiency electric motor engineered for mid-sized remote-controlled multirotors and airplanes. Combining durable construction with reliable performance metrics, this power plant delivers a strong thrust-to-weight ratio to extend airborne flight cycles.
Features
-
High-efficiency configuration engineered to optimize energy conversion and minimize battery drain during operation
-
Durable outrunner external housing format built to sustain rigorous outdoor operational loads
-
Wide multi-cell power support accommodating varied aerial configurations and specialized custom platforms
-
Delivers reliable, continuous performance suited for remote-controlled model builds up to 900 grams
Specifications
-
Battery: 2~4 Cell /7.4~14.8V
-
RPM: 950kv
-
Max current: 23.2A
-
No load current: 1A
-
Max power: 243W
-
Internal resistance: 0.070 ohm
-
Weight: 70g (including connectors)
-
Diameter of shaft: 4mm
-
Dimensions: 28x36m
-
Prop size: 7.4V/12x6 14.8V/9x6
- Max thrust: 850g
Package Includes
-
1 x Turnigy D2836/9 950KV Brushless Outrunner Motor
