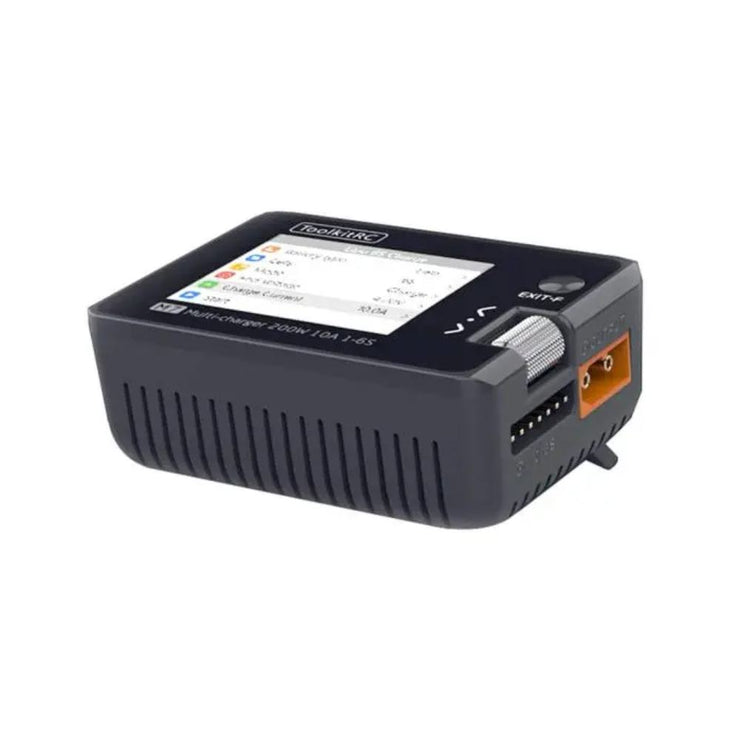

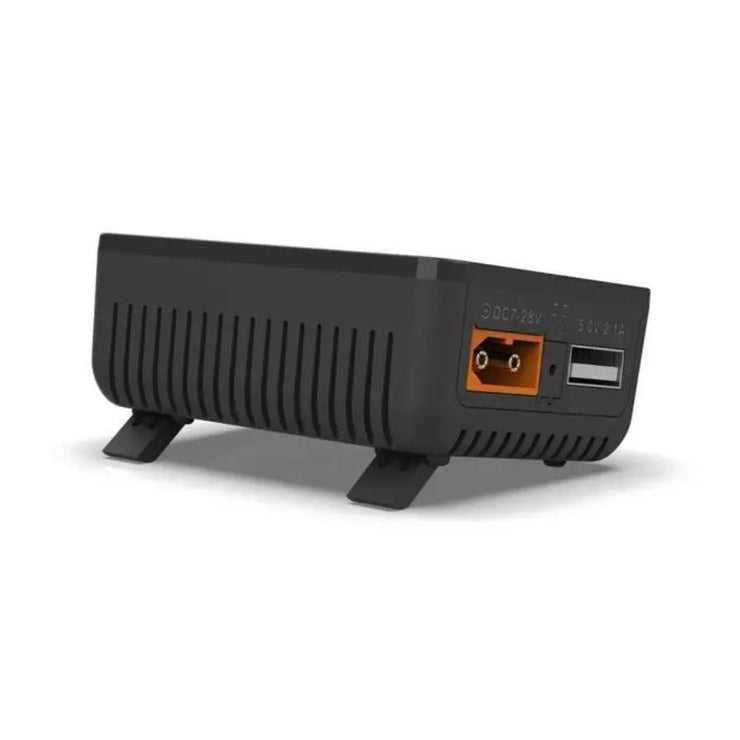

ToolkitRC M7 200W 10A 2-6S DC Multifunctional Balance Charger

Pre-orders to secure your order.
Our new stock is expected to arrive around October 1st.

The ToolkitRC M7 is a 200W multifunctional balance charger with 33.3% more power than the M6. With its IPS wide-angle display and simplified interface, this charger is ideal for outdoor viewing. The scroll wheel allows for better control for years of trouble-free use!

N.B: a Power Supply (sold separately) is needed to operate this charger.

Features

• 240 X 320 Screen Resolution
• IPS Wide-angle display
• Simplified Interface
• Electricity Measure
• Multi-functionality
• Balance Charge
• Multi-language
• Signal Source
• Drone Charge
• Signal Testing

Specifications:

• • LCD: IPS 2.0inch LCD 320*240 Pixel
  • Product size: 73*51*27 mm
  • Pack size: 84*79*39 mm
  • Product weight: 90g
  • Pack weight: 150g



• CHARGER

  • Discharge power: 200W @MAX 10A Recycle mode / 10W@3A Normal mode
  • Type of battery: Lipo LiHV LiFe Lion@1-6S / NiMh @1-16S Pb @1-10S
  • Input voltage 7.0-28.0V @MAX 12A
  • Charger power: 200W @MAX 10A
  • Balance current400mA @2-6S
  • USB: 2.1A @5.0V or Upgrade



• OUTPUT

  • Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
  • SBUS: 880-2200us*16CH @20-100Hz
  • PPM: 880-2200us*8CH @20-50Hz
  • PWM: 500-2500us @20-1000Hz
  • OverCurrent Cutoff time: <5ms



• MEASURER

  • SBUS: 880-2200us*16CH @20-100Hz
  • Internal resistance: 1-99mR @1-6S
  • PPM: 880-2200us*8CH @20-50Hz
  • ESC: 200W@10A PWM Output
  • PWM: 880-2200us @20-400Hz
  • Voltage:1.0-5.0V @1-6S

Package Includes:

• 1 x ToolkitRC M7 200W 10A 2-6S DC Multifunctional Balance Charger
