Product Details

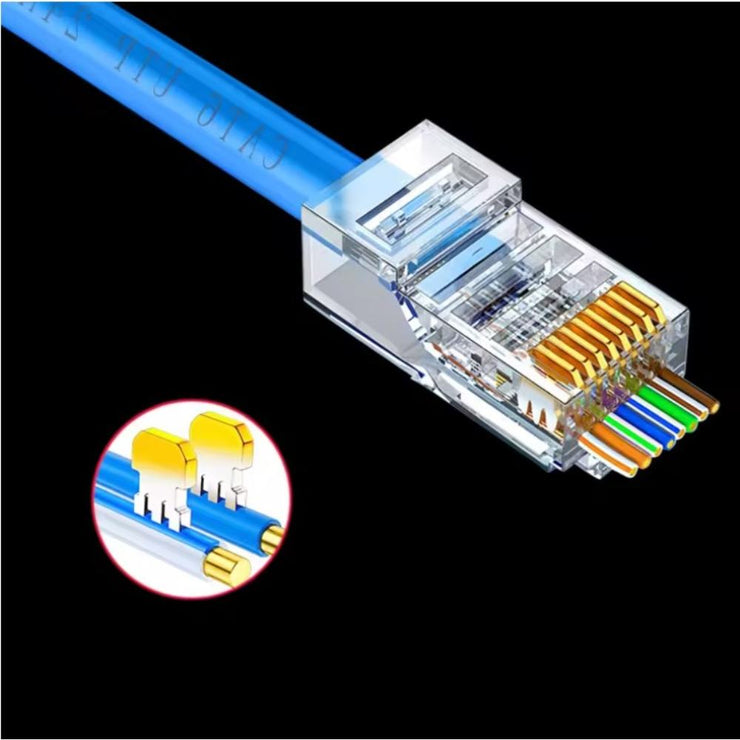

This innovative RJ45 8P8C connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector completely and out the front. This allows users to easily verify the proper wiring order. Because this also allows to tightly pull the connector down over the cable jacket it seats more tightly in the rear of the connector as well. This reduces the distance between the wire twists and contacts and improves performance.
- No more wasted crimps! More reliable, higher performance
- 8P8C connections (8 ports for 8 cables with 8 connectors)
- Designed for Stranded Cable - Not suitable for solid
- Fits all RJ45 crimper tools
- Practical pass-through design for easy crimping
- Suitable for conductors of max. 24 AWG
- Available in UTP and FTP
FTP Pass Through RJ45
Designed for shielded networking cables the metal housing allows you to use with foil shielded cables. The RJ45 end allows you to pass through the core's trim and crimp.
UTP Pass Through RJ45
Designed for unshielded networking cables, the pass through ends have a clear plastic housing with pass through end to allow you to easily thread the cores through the end of the RJ45 plug trim and crimp.
Specifications:
| Manufacturer | kenable |
|---|---|
| Part number | 010532 |
| Item Weight | 20 g |
| Product Dimensions | 10 x 12 x 0.3 cm; 20 g |
| Item model number | 010532 |
| Size | Shielded (FTP) 10 Pack |
| Shape | Round |
| Item Package Quantity | 1 |
| Specification met | RoHS |
| Special Features | shielding |
| Batteries included? | No |
| Batteries Required? | No |
Package Includes:
- 1 x Pass Through RJ45 Plugs Crimps Cat5e/Cat6 Ethernet Network Cables
