Product Details
The SG90 9g Micro Servo is a lightweight, high-quality, and dependable actuator perfect for small-scale RC aircraft, micro helicopters, robotics, and various DIY electronics projects. Known for its compact footprint and surprising torque output, this mini servo integrates seamlessly into tight builds where weight and space efficiency are paramount.
Specifications:
-
Size : 30mm x 30mm x 12mm
-
Weight : 9g
-
Operating Speed (4.8V no load): 0.12sec/60 degrees
-
Stall torque: 1.2kg / 42.3oz (4.8V); 1.6 kg / 56.4oz (6.0V)
-
Temperature Range: -30 to +60 Degree
-
Dead Band Width: 7usec
-
Operating Voltage: 3.0 - 7.2 Volts
- Connector Wire Length 150MM

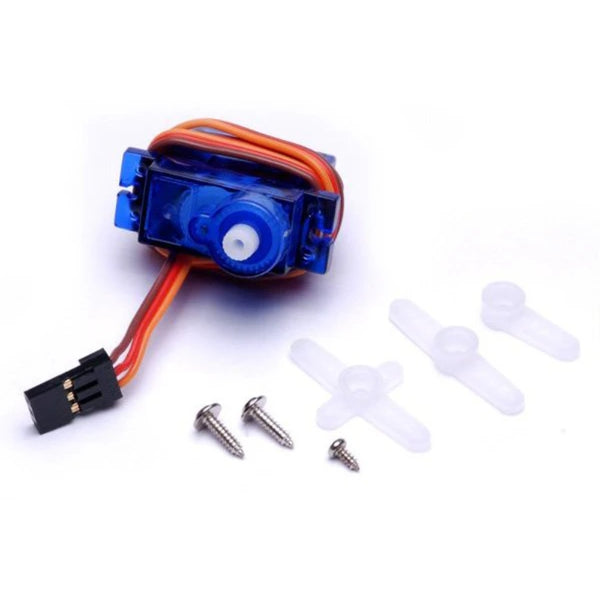

Package Includes:
- 1 x SG90 9g Micro Servo
