Product Details

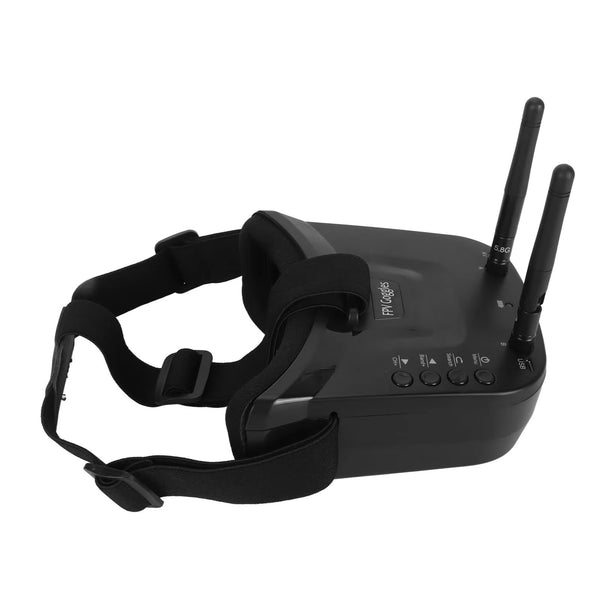

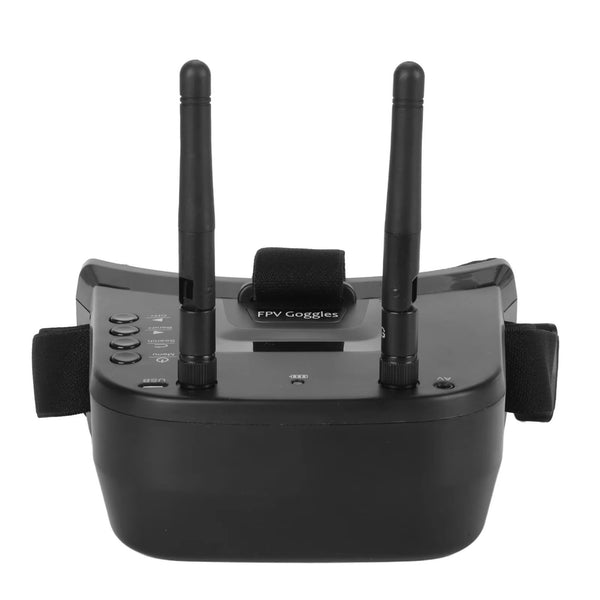

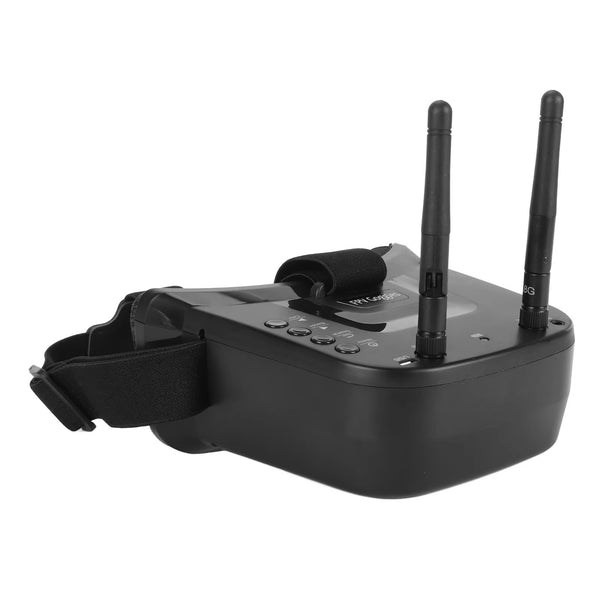

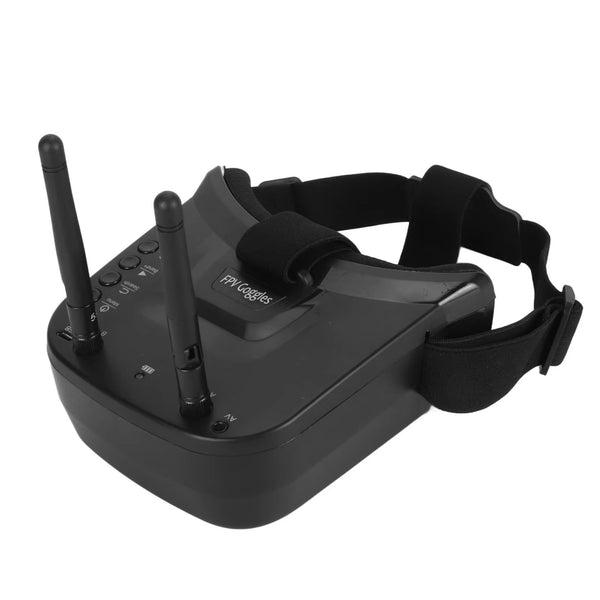

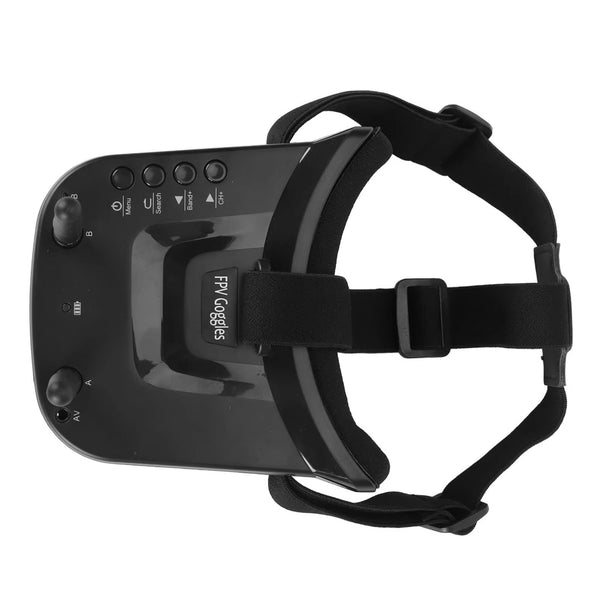

The Eachine VR009 is a compact, ultra-lightweight 5.8GHz 40-channel FPV goggle system designed specifically for easy entry into analogue FPV flight. Featuring a 3.0-inch 480x320 high-brightness display, double antenna reception, auto-frequency searching, and a built-in rechargeable lithium-ion battery, it provides an all-in-one low-latency video solution for beginner drone pilots.
Features:
-
Compact size and ultra-lightweight ergonomics
-
Low power consumption with operational current between 300mA and 330mA
-
Dual antenna reception for improved signal stability
-
40-channel receiver with integrated auto-search function including RaceBand
-
High-brightness 3.0-inch 480x320 LCD screen
-
Built-in 3.7V 1200mAh high-capacity lithium-ion polymer battery
-
Universal Micro-USB charging interface
-
Low-latency real-time video feedback
-
Bilingual menu navigation supporting English and Chinese languages
-
Supports external video signal input and AV signal output for connecting external DVRs
Specifications:
-
Screen Size: 3.0 Inch
-
Resolution: 480x320 dot
-
Display Ratio: 16:9
-
Screen Brightness: 500cd/m² with high-brightness LED backlight
-
Lens: 4X Fresnel Lens with 92% light transparency rate
-
Video Delay: Less than 20ms
-
Frequency: 5.8GHz 40CH with RaceBand
-
Antenna Connectors: 2 x RP-SMA Male
-
Battery: 3.7V / 1200mAh (Up to 2.5 hours runtime per charge)
-
Power Adapter Requirement: DC 5V / 1A USB
-
Operating Voltage: 3.7V to 4.2V
-
Operating Current: 300mA to 330mA
-
Maximum Charging Current: 500mA
-
Dimensions: 13.5cm x 13.2cm x 6.5cm
-
Weight: 180g (with headband, excluding antennas)
Package Includes:
-
1 x Eachine VR009 Goggles
-
1 x Integrated 3.7V 1200mAh Battery
-
2 x Dipole Antennas
-
1 x USB Charging Cable
-
1 x User Manual
