SunnySky R2205 2300kv FPV Brushless Motors x 4

Regular price $60.00 $52.00

Availability: In Stock Out of Stock

Product SKU: R0072

This is a Set of SunnySky Motors R2205 2300kv ( 4 x Motors ) Description:Brand name: SunnyskyItem name: R2205 Brushless MotorKV: 2300KV and 2500KV (optional)Rotation: CCWScrew thread: CWStator Diameter: 22mmStator Thickness: 5mmNo.of Stator Slots: 12No.of Rotor Poles: 14NO-Load Current(A/10V): 1.2A...
Available: 1
1




    << PRODUCT DETAILS >>

Product Details

This is a Set of SunnySky Motors R2205 2300kv ( 4 x Motors )

Description:
Brand name: Sunnysky
Item name: R2205 Brushless Motor
KV: 2300KV and 2500KV (optional)
Rotation: CCW
Screw thread: CW
Stator Diameter: 22mm
Stator Thickness: 5mm
No.of Stator Slots: 12
No.of Rotor Poles: 14
NO-Load Current(A/10V): 1.2A (2300KV); 1.4A (2500KV)
Motor Resistance: 51.9mΩ (2300KV); 42mΩ (2500KV)
Max Continuous Current: 40A/10s (2300KV); 45A/10s (2500KV)
Max Continuous Power: 705W (2300KV); 756W (2500KV)
Weight: 31g
Rotor Diameter: 27.4mm
Body Length: 18mm
Max Lipo Cell: 3-4S
Recommend ESC: 30-45A (2300KV); 45-50A (2500KV)
Recommend Prop(inch): GF5040*3  GF5045*3

Package Included:

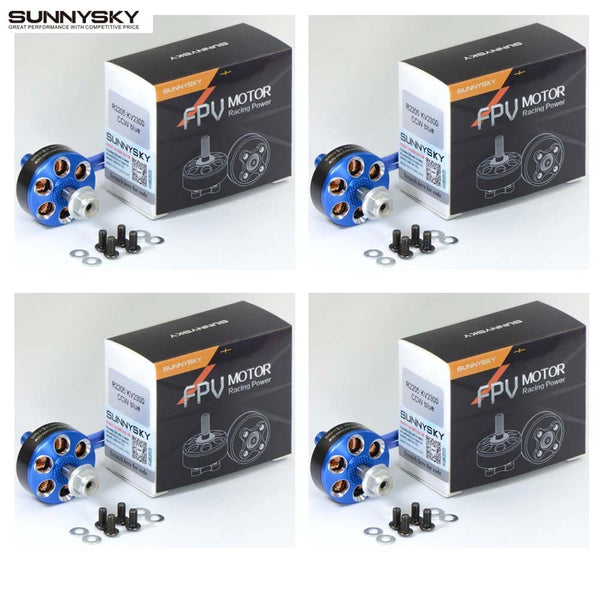

4x Sunnysky R2205 Brushless Motor
