Pre-Order!
Product Details
Pre-orders to secure your order.
Our new stock is expected to arrive around October 1st.
In this design, AIO integrates the flight control and four-and-one ESC, and uses high-density BGA as the main control chip to increase the integration level and make it perfect.
ESC output current 40A continuous current, 4 independent current outputs
Specifications:
-
- The USB port is installed on the side with a built-in USB ESD chip
- All signal ports add protection buffer components
- Imported originals, stable quality

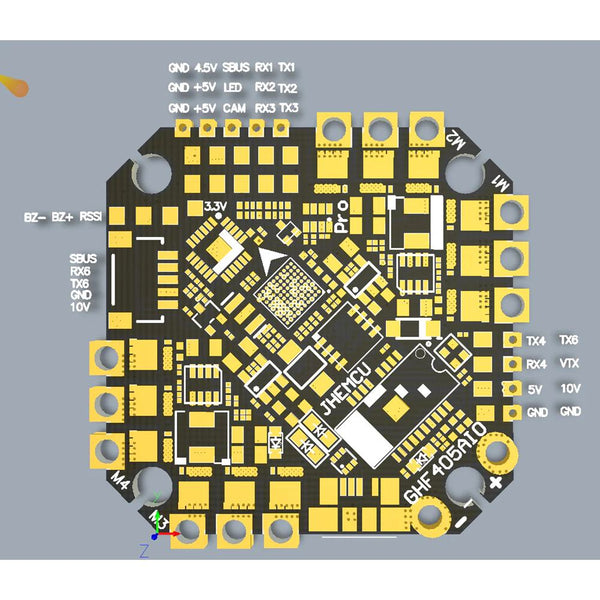

- Reserved common functional interface pads, 5 UART ports (UART1, UART2, UART3, UART4, ART6).
- Half-hole motor pad, support high current output
- Integrated Betaflight F405 processor flight controller, OSD BEC 5V/2.5A and 10V/2A, support 3-6S battery
FLIGHT CONTROL PARAMETERS
- CPU: STM32F405
- Gyro Sensor: ICM42688P
- Size: 33* 33mm (25.5mm mounting hole)
- Firmware version: Betaflight JHE405
- Black box: support
- Barometer: Support
- OSD: Support
- IIC: Support
- UART: support, UART1: receiver, UART6: DJIVTX/IRC/Smart Audio
- BEC: BEC 5V/2.5A and 10V/2A
- DJIVTX: Support, reserved special socket, equipped with plug wire.

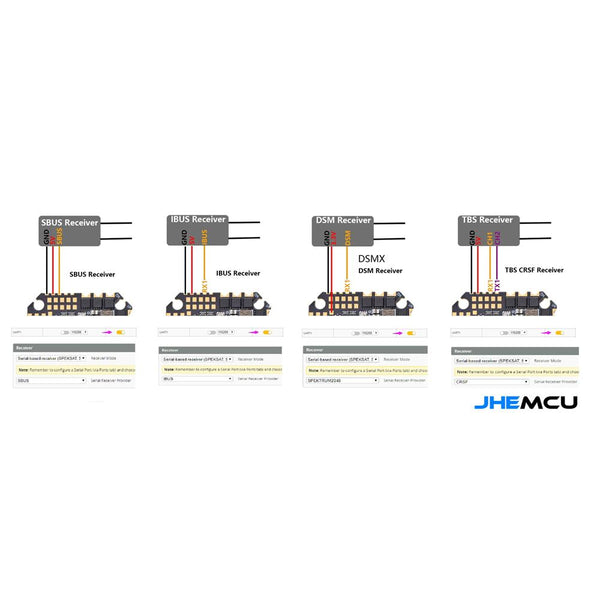

- Receiver: SBUS, IBUS, DSM2, DSMX, TBS, etc.
- Support WS2812 programmable LED
- Support buzzer
- Built-in voltage and current sensors
- Weight: 7.1 grams
ESC PARAMETERS
- Bluejay
- Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Input voltage: 3S-6S Lipo
- Continuous current: 40A (two models are optional)
- Firmware: Bluejay G_H_30_48k.HEX
Package Includes:

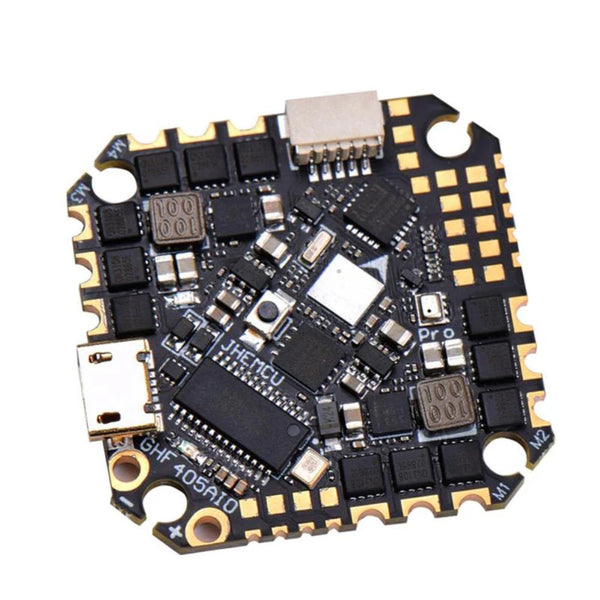

- 1 x JHEMCU GHF405 Bluejay 40A 3-6S AIO Whoop Flight Controller
