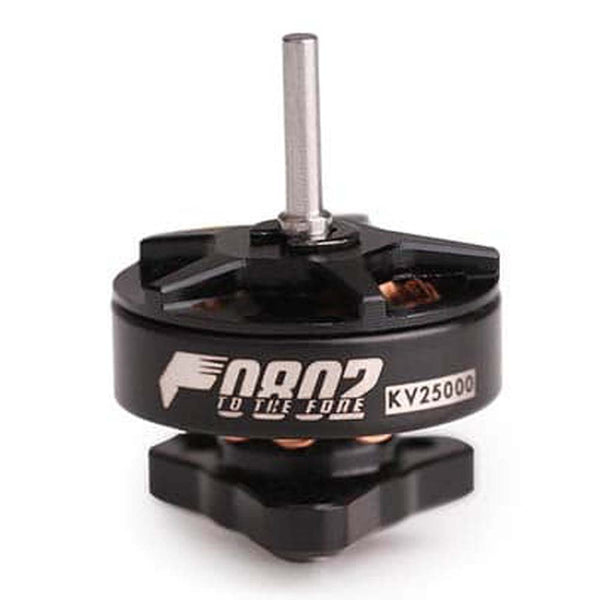

T-Motor 0802 25000Kv Micro Motor

Regular price $11.00 Sale

Availability: In Stock Out of Stock

Product SKU: R0069

The tiniest T-motors! All the quality and style you expect from a T-Motor, in 1S whoop sizes! These motors are equipped with JST-1.25 plugs on 33mm of motor wire. Specifications Kv: 25000Kv Input Voltage: 1S Configuration: 9N12P Max Continuous Current:...

Available: 1

<< PRODUCT DETAILS >>

Product Details

The tiniest T-motors! All the quality and style you expect from a T-Motor, in 1S whoop sizes! These motors are equipped with JST-1.25 plugs on 33mm of motor wire.

Specifications

Kv: 25000Kv
Input Voltage: 1S
Configuration: 9N12P
Max Continuous Current: 4.82A
Internal Resistance: 180mΩ
Motor Dimensions: Φ10.6x14.7mm
Stator Dimensions: Φ8x2mm
Shaft Diameter: 1mm
Mounting Pattern: Φ6mm, 3x M1.4
Wire Dimensions: JST-1.25, 33.5mm
Weight: 2.04g (w/ wire)

Includes

1x T-Motor 0802 25000Kv Micro Motor
