The TS5823L is an ultra-compact, lightweight 5.8GHz 600mW video transmitter designed for small multi-rotors and micro FPV aircraft setups. Featuring a push-button interface for easy channel switching, this transmitter provides reliable analog video transmission without requiring complex dip switch configurations.

Features:

5.8GHz 40-channel operation covering A, B, E, F, and R bands
Compact footprint and lightweight design suitable for small-scale FPV drones

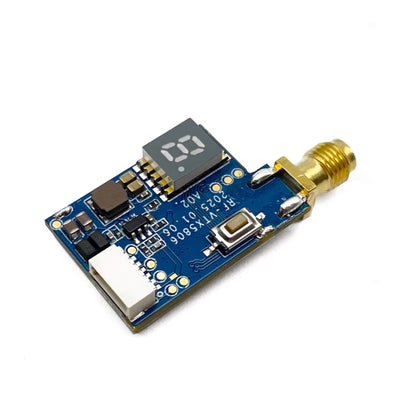

Single push-button interface for quick frequency and channel switching
600mW output power for stable video transmission
Wide operating voltage range supporting 7V to 24V input

Specifications:

Output Power: 600mW
Channels: 40CH
Video Format: NTSC / PAL
Output Impedance: 50 Ohm
Operating Voltage: 7V – 24V
Supply Current: 190mA
Video Input Level: 0.8 – 1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5 – 2.0 Vp-p
Audio Input Impedance: 10K Ohm
Audio Carrier Frequency: 6.5 MHz
Operating Temperature: -10°C to 85°C

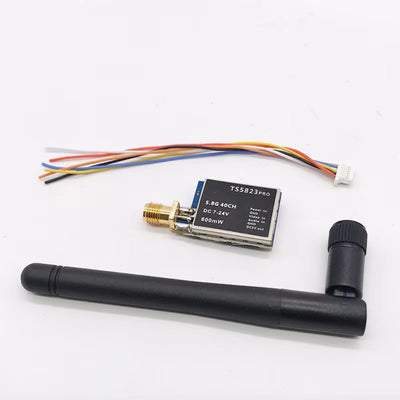

Package Includes:

1 x TS5823L 600mw 5.8GHz 48CH Analog VTX

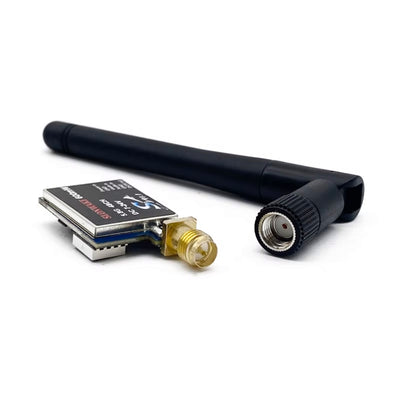

1 x Antenna
1 x Cable Harness
