Pre-orders to secure your order.
Our new stock is expected to arrive around October 1st.

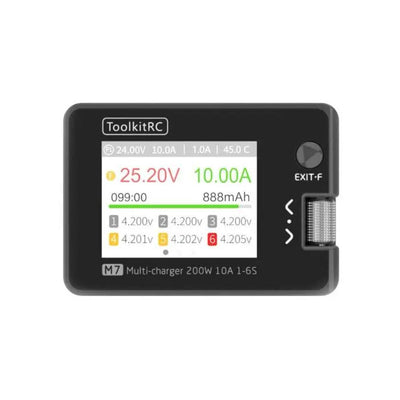

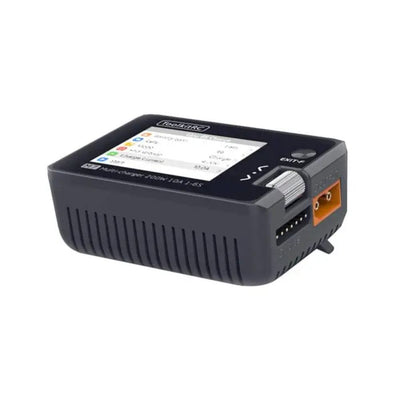

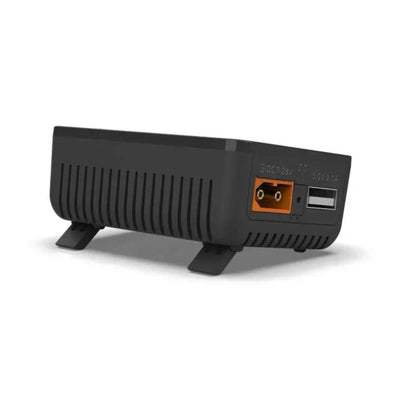

The ToolkitRC M7 is a 200W multifunctional balance charger with 33.3% more power than the M6. With its IPS wide-angle display and simplified interface, this charger is ideal for outdoor viewing. The scroll wheel allows for better control for years of trouble-free use!

N.B: a Power Supply (sold separately) is needed to operate this charger.

Features

240 X 320 Screen Resolution
IPS Wide-angle display
Simplified Interface
Electricity Measure
Multi-functionality
Balance Charge
Multi-language
Signal Source
Drone Charge
Signal Testing

Specifications:

- LCD: IPS 2.0inch LCD 320*240 Pixel
- Product size: 73*51*27 mm
- Pack size: 84*79*39 mm
- Product weight: 90g
- Pack weight: 150g
CHARGER
- Discharge power: 200W @MAX 10A Recycle mode / 10W@3A Normal mode
- Type of battery: Lipo LiHV LiFe Lion@1-6S / NiMh @1-16S Pb @1-10S
- Input voltage 7.0-28.0V @MAX 12A
- Charger power: 200W @MAX 10A
- Balance current400mA @2-6S
- USB: 2.1A @5.0V or Upgrade
OUTPUT
- Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
- SBUS: 880-2200us*16CH @20-100Hz
- PPM: 880-2200us*8CH @20-50Hz
- PWM: 500-2500us @20-1000Hz
- OverCurrent Cutoff time: <5ms
MEASURER
- SBUS: 880-2200us*16CH @20-100Hz
- Internal resistance: 1-99mR @1-6S
- PPM: 880-2200us*8CH @20-50Hz
- ESC: 200W@10A PWM Output
- PWM: 880-2200us @20-400Hz
- Voltage:1.0-5.0V @1-6S

Package Includes:

1 x ToolkitRC M7 200W 10A 2-6S DC Multifunctional Balance Charger
