The HGLRC 5.8G antenna adopts the latest radio frequency solution in the FPV industry, pairing PCB with FPC structure to enhance signal frequency consistency while minimizing signal transmission power loss.

Features:

The ingenious exterior design integrates a sleek metallic style, appealing to the eye.
The advanced radio frequency structure effectively minimizes transmission loss.
The connectors come in various lengths and styles to accommodate diverse application needs.
Every antenna undergoes testing with a spectrum analyzer to ensure compliance with SWR standards.

Specifications:

Frequency range(MHz):5500-6000
Polarization:RHCP/LHCP
Gain(dBi): 2.5db
Input Impedance(Ω):50
VSWR(5800MHZ):≤1.5
Maximum input power(W):50
length:150mm
Connector Type: UFL

Package Includes:

1 x HGLRC Long Range 5.8G Antenna - UFL LHCP 150mm

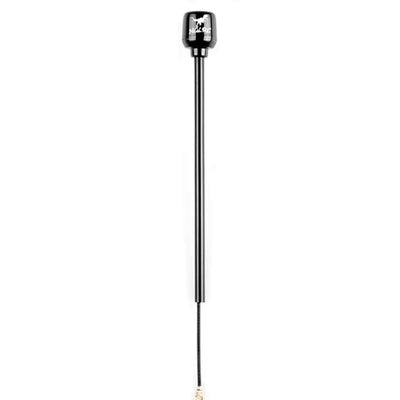

HGLRC Long Range 5.8G 2.5dBi UFL/IPEX 150mm Antenna LHCP Compatible with DJI Vista/O4/O4 Pro
