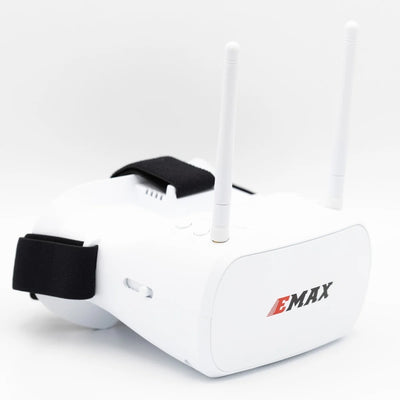

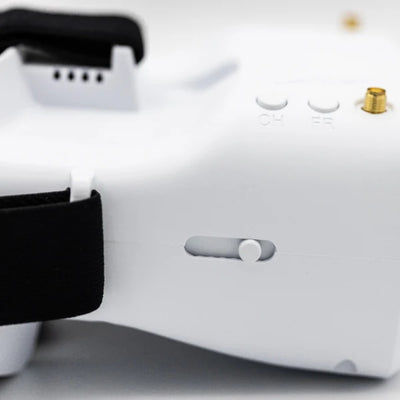

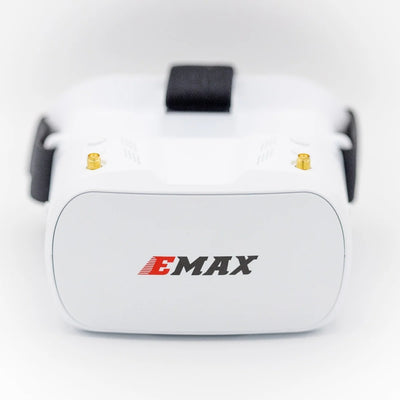

The EMAX 5.8G 48CH Diversity FPV Goggles feature a high-resolution 4.3-inch LCD display designed to provide an immersive box-goggle view for micro and mini FPV drones. Equipped with dual antennas in a diversity configuration, this headset automatically selects the strongest signal across 48 available channels to deliver a clear and reliable video feed. It comes integrated with a 4.2V 1800mAh battery for extended flight sessions and plug-and-play convenience.

Features:

High-resolution 4.3-inch LCD screen displaying a crisp 480x320 video feed.
True diversity receiver system utilizing dual antennas to maximize signal stability and reception range.
Full 48-channel 5.8GHz receiver supporting standard Band A, B, E, F, R (Raceband), and L frequencies.
Ergonomic box design with lightweight construction to minimize wearing fatigue during extended flights.
Integrated 4.2V 1800mAh rechargeable battery charged via a standard USB port.
On-screen display (OSD) showing battery status and current channel selection.
Universal compatibility with all 5.8GHz analog FPV transmitters and micro whoop drones.

Specifications:

Screen Size: 4.3 inches
Screen Resolution: 480 x 320 pixels
Frequency Band: 5.8GHz
Channel Count: 48 Channels (including Raceband)
Antenna Configuration: Dual Antennas (Diversity Receiver)
Operating Voltage: 4.2V
Internal Battery: 1800mAh LiPo Battery
Battery Charging: Built-in USB Charging System
Compatibility: Standard Analog 5.8GHz VTX Transmitters

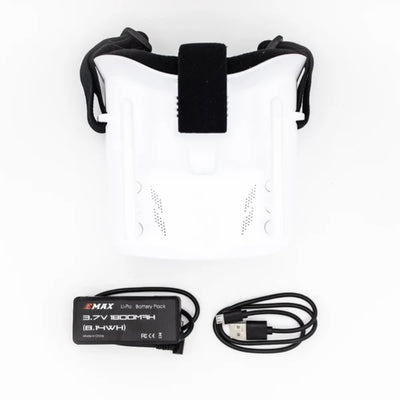

Package Includes:

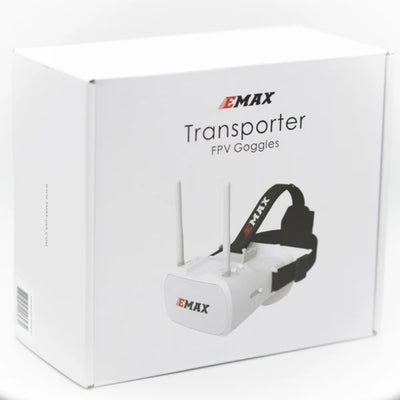

1 x EMAX 5.8G 48CH Diversity 4.3-Inch FPV Goggle Headset
2 x 5.8GHz Linear Dipole Antennas

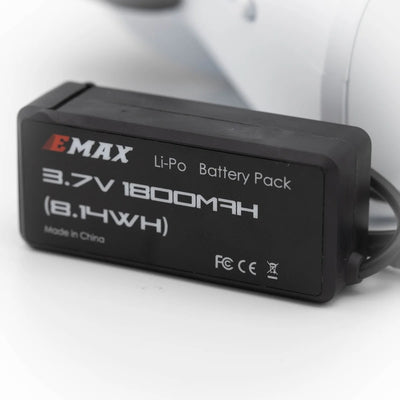

1 x Internal 4.2V 1800mAh Battery Pack
1 x Micro USB Charging Cable

(PRE-ORDER) EMAX Tinyhawk 5.8G 48CH 4.3" 480x320 LCD Diversity Analog FPV Goggles
