N.B: This Analog Camera can be used with an Analog VTX and an Analog Goggles.

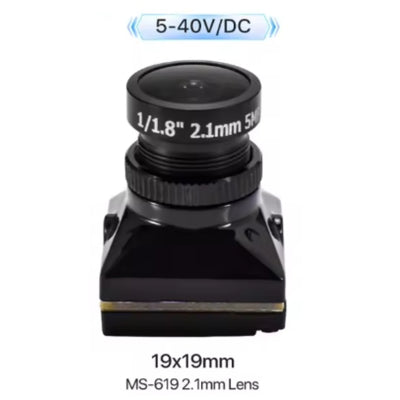

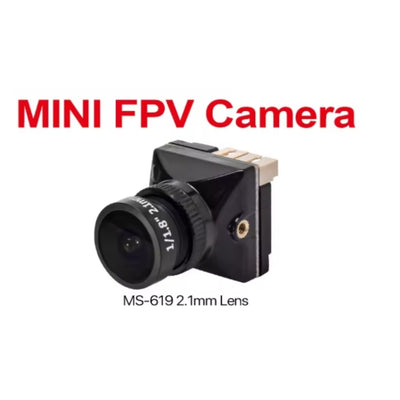

Compact 19mm cube FPV drone camera with 2.1mm lens, featuring Super WDR, 3D noise reduction, 0.001Lux ultra-low light performance and multi-language OSD, ideal for tiny whoop and racing drones.

Features:

1. 1500/1800TVL high horizontal resolution, Super WDR + 3D digital noise reduction, 0.001Lux ultra-low illumination, maintain sharp picture in dusk, tunnel and dim environment.
2. MS-514 1.8mm 165° panoramic lens for freestyle flight; 2.1mm 135mm standard lens for stable racing, eliminate blind area during high-speed maneuver.
3. Freely toggle NTSC/PAL, color/black-white day-night mode, electronic shutter up to 1/100000s; multi-language OSD menu for easy parameter tuning.
4. 5-40V wide voltage compatibility, no need extra voltage regulator; works stably in -20℃ to 60℃ cold/hot outdoor flight condition.

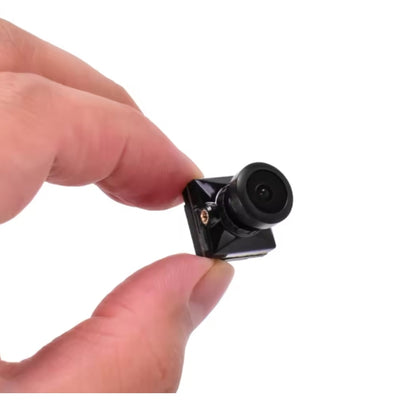

5. Lightweight design, cube miniature structure, two dimension specs available, ultra-light load, no extra drag for micro racing drones.

Specifications:

Image Sensor：1/3" CMOS
Horizontal Resolution：1800TVL
FOV：135°
Lens：2.1mm Lens
Video Format：Switchable NTSC / PAL
Aspect Ratio：4:3 / 16:9 (Auto Recognition)
WDR：Super WDR
Noise Reduction：3DNR
Minimum Illumination：0.01 Lux
Video Output：CVBS Analog Output
Day/Night Mode：External/Internal Trigger, Color/B&W Switchable
OSD Languages：English, Simplified Chinese, Traditional Chinese, Russian, Spanish, Italian, French, German, Portuguese, Japanese
Electronic Shutter：PAL: 1/50 ~ 1/100000s；NTSC: 1/60 ~ 1/100000s
Input Voltage：DC 5V~40V Wide Voltage
Operating Temperature：-20℃ ~ +60℃
Net Weight：6.0g
Dimensions：19×19×20mm
Resolution：960H

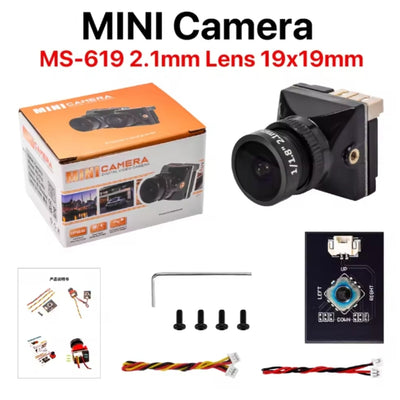

Package contents:

1 * Mini FPV Camera
1 * Control board
1 * Wrench
4 * Screws
1 * Instruction manual
2 * Connection cable

(Pre-Order) Mini Analog Camera MS-619 1800TVL 2.1mm 4:3 / 16:9 for FPV
