The RushFPV Cherry Long Boy Antenna is a high-performance 5.8GHz antenna designed for FPV drones using U.FL/IPEX connectors. Engineered for maximum signal coverage and durability, it features a flexible 150mm coaxial tube that withstands crash impacts and angle bends without compromising signal integrity.

Specifications:

Gain: 1.2dBi
S11 SWR: 1.4 max – 1.1 min
Band Width: 5600-6000-MHz
Axial Ratio: Around 1.0
Polarization: LHCP/RHCP
Connector: u.fl/ipex
Antenna Length: 150mm (end to end)

Features:

Optimized for FPV racing drones
Maximum signal coverage. 5.6-6GHz bandwidth covers all of race band and all channels have nearly uniform transmission strength.
Perfect circular polarization axis ratio. Effectively suppress screen flicker caused by multi-path interference.
Small and sturdy. Optimized design obtained through massive impact tests. Flexible tube can withstand angle bends and crash impacts to avoid cable damage.
Thin cable. Teflon skin, double shielded RG-137 coaxial cable with silver plated core. This wire is soft flexible and low signal loss.
Between 5650 and 5950MHz, VSWR is below 1.2 meaning transmission efficiency is up to 98% This can also help reduce VTX heat.
Quick installation. Antenna clips are designed to the same size as standard flange SMA sockets. The length of the antenna tube can be cut to meet your needs.
Quality Assurance. Cherry antennas are tuned for performance by the Rush FPV Professional Microwave Laboratory, and each antenna is qualified by a network analyser before leaving the factory.

Package Includes:

1 x RushFPV Cherry 5.8GHz U.FL/IPEX Long Antenna – LHCP

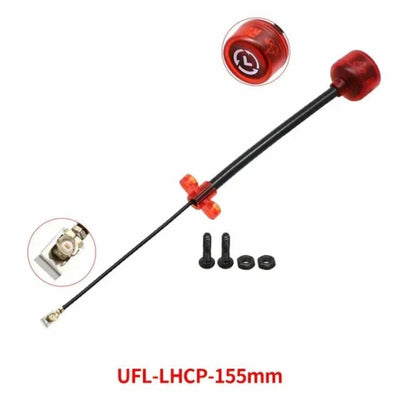

RushFPV Cherry 5.8GHz UFL/IPEX Long Antenna LHCP Compatible with DJI Vista/O4/O4 Pro
