The GEP-CT30 O3 version of the frame developed by the GEPRC team specifically for the O3 Air Unit is now officially released.

The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with multiple action cameras, TPU soft fixing method designed for O3 camera, to prevent the camera IMU resonance vibration. GEP-CT30 O3 frame supports the installation of mainstream AIO flight controllers with 25.5mm*25.5mm mounting holes, and is compatible with various VTX mounting holes on the market such as 20mm*20mm/25.5mm*25.5mm. With 12mm * 12mm motor mounting holes, can be installed with larger 15-18-20 series motors, with strong power output with 3-inch propeller. Ultra-light fuselage weight for more confident flying.

Tuned by GEPRC professionals with high-qualityproduction process, explore endless possibilities for your flight shooting. In the face of the headwind, we only go up to the wind, never go with the wind. Salute to the filmmakers!

Features

1. Design that combines engineering and aesthetics.
2. Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts.
3. Selected high-toughness and impact-resistant PC +PET material for injection molding.
4. Aviation 7075-T aluminum alloy camera mounting bracket and fuselage aluminum column.
5. Propeller guard embedded ring Cob light strip, carefully tuned light effect. Color brightness in the day and night can be clearly displayed.
6. The newly developed gimbal shock absorption structure can disintegrate high frequency jitter and jello effect. Easily carry a variety of action cameras.
7. Compatible with a variety of fpv system with the program, choose to belong to your first-person view.

Specifications:

Brand: GEPRC
Model: GEP-CT30 O3
Motor to Motor: 127mm
Isolation Plate: 2.0mm
Main Plate: 3.0mm
Bottom Plate: 1.5mm
FC Mounting Hole: 25.5mm x 25.5mm
VTX Mounting Hole: 20mm x 20mm /25.5 x 25.5
Motor Mounting Hole: 12mm x 12mm
FPV Camera Spacing : 20mm
Suitable propeller size: 3 inch propeller
Weight: 101.8g (without Led light strip) / 107.3g (with COB light strip)

Package Includes:

1 x GepRC Cinebot30 3 inch O3/O4 Compatible Whoop Frame Kit + COB Light Strip BLUE

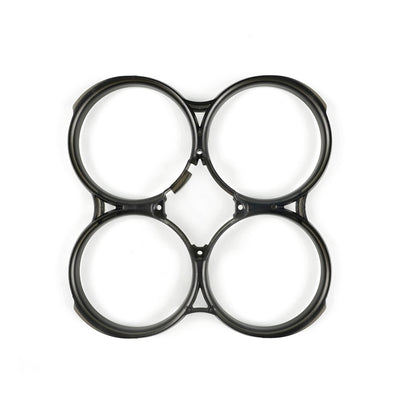

GepRC Cinebot30 3 inch Frame Replacement Propeller Guard
