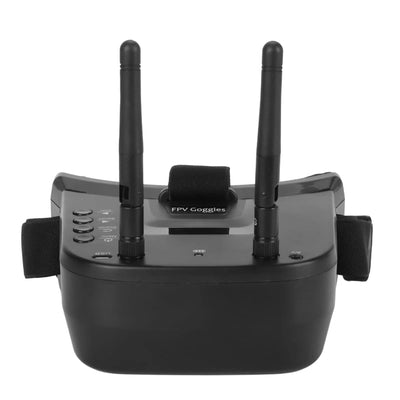

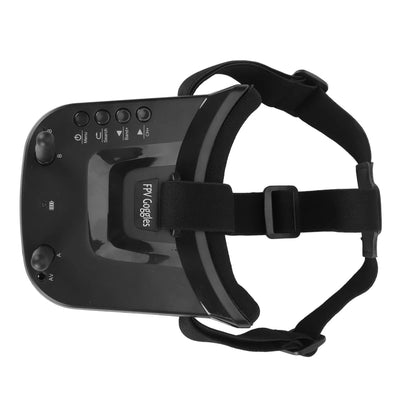

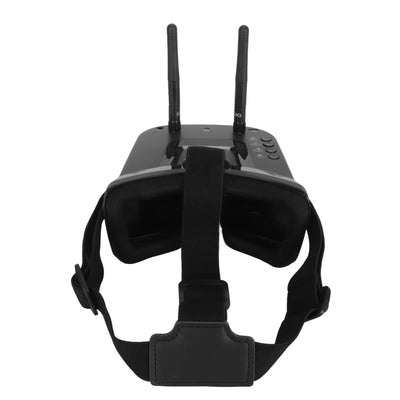

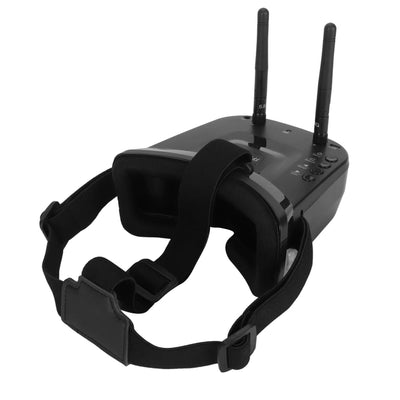

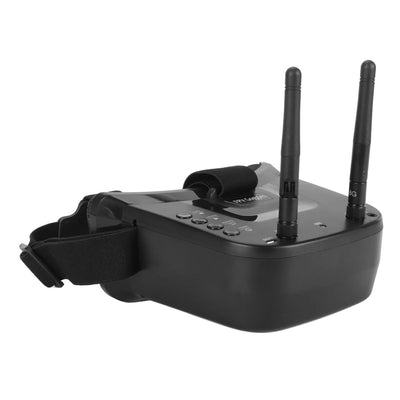

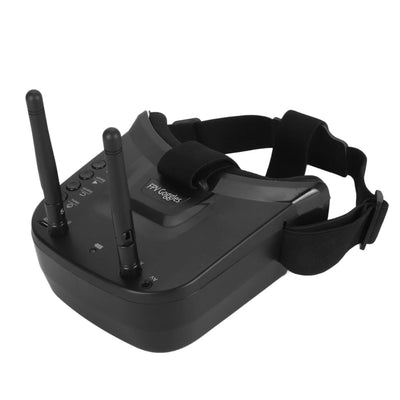

The Eachine VR009 is a compact, ultra-lightweight 5.8GHz 40-channel FPV goggle system designed specifically for easy entry into analogue FPV flight. Featuring a 3.0-inch 480x320 high-brightness display, double antenna reception, auto-frequency searching, and a built-in rechargeable lithium-ion battery, it provides an all-in-one low-latency video solution for beginner drone pilots.

Features:

Compact size and ultra-lightweight ergonomics
Low power consumption with operational current between 300mA and 330mA
Dual antenna reception for improved signal stability
40-channel receiver with integrated auto-search function including RaceBand
High-brightness 3.0-inch 480x320 LCD screen
Built-in 3.7V 1200mAh high-capacity lithium-ion polymer battery
Universal Micro-USB charging interface
Low-latency real-time video feedback
Bilingual menu navigation supporting English and Chinese languages
Supports external video signal input and AV signal output for connecting external DVRs

Specifications:

Screen Size: 3.0 Inch
Resolution: 480x320 dot
Display Ratio: 16:9
Screen Brightness: 500cd/m² with high-brightness LED backlight
Lens: 4X Fresnel Lens with 92% light transparency rate
Video Delay: Less than 20ms
Frequency: 5.8GHz 40CH with RaceBand
Antenna Connectors: 2 x RP-SMA Male
Battery: 3.7V / 1200mAh (Up to 2.5 hours runtime per charge)
Power Adapter Requirement: DC 5V / 1A USB
Operating Voltage: 3.7V to 4.2V
Operating Current: 300mA to 330mA
Maximum Charging Current: 500mA
Dimensions: 13.5cm x 13.2cm x 6.5cm
Weight: 180g (with headband, excluding antennas)

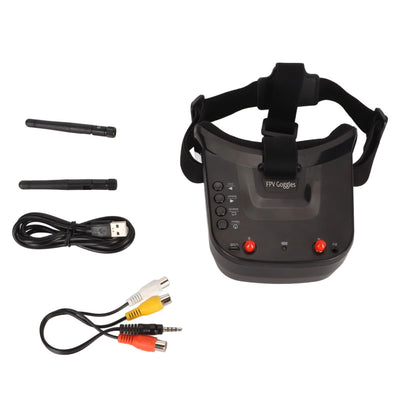

Package Includes:

1 x Eachine VR009 Goggles
1 x Integrated 3.7V 1200mAh Battery
2 x Dipole Antennas
1 x USB Charging Cable
1 x User Manual

Eachine VR009 5.8G 40CH 3" 480x320 LCD Diversity Analog FPV Goggles with AV signal output
