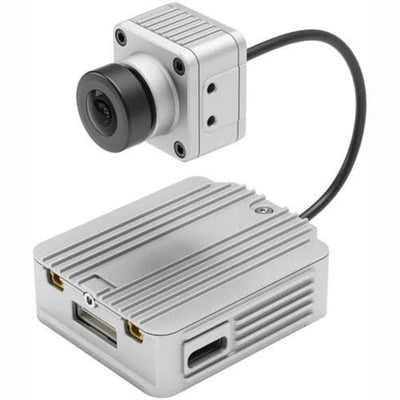

The airborne side of the DJI FPV System is no less incredible than the goggles it's designed for. There is an impressive amount of technology crammed into this rugged aluminum housing. This unit is not only your FPV/HD Camera, 1080p 60fps / 720p 120fps DVR and Digital VTX in one, but if you combine it with the DJI FPV Remote Controller, it's also your RC receiver, with a 4 KM range! You're still welcome to use your trusy old RC Transmitter and RX with the DJI FPV System, but the DJI FPV Remote Controller ties the whole system together very perfectly, allowing users to remotely set parameters of the DJI FPV Goggles, the DJI Air Unit, and the DJI FPV Camera.

Features

Air Unit

1080p 60fps / 720p 120fps DVR
Powerful DJI HDL FPV Transmission System
Embedded RC Receiver
Multi Antenna Technology
Durable Aluminum Housing
Maximum 8 Channels

Camera

150° Ultra-Wide-Angle Lens
Three Picture Modes for Different Scenarios (Standard/Racing/LED)
Adjustable Brightness & Saturation

Specifications

Input Power 7.4-17.6 V, about 4-9 W
Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP) FCC/SRRC: <30 dBm;
CE: <14 dBm
Min. Latency (end-to-end) Low Latency Mode (720p/120fps): <28 ms
High Quality Mode (720p/60fps): <40 ms
Max. Transmission Distance FCC/SRRC: <4 km; CE: <0.7 km
Video Format MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface USB-C, MMCX, 3-in-1 port, microSD card slot
Supported Flight Control System F3, F4, F7
Operating Temperature Range 32°to 104°F (0° to 40°C)
Weight: Air Unit (Camera included): 45.8 g
Air Unit Dimensions: 44×37.8×14.4mm
Camera Dimensions: 27.4×21.1×20.1mm
Coaxial Cable Length: 100mm

Channels Info FCC

Channels: 8
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839

CE/SRRC

Channel 1: 5735
Channel 2: 5770
Channel 3: 5805
Channel 8: 5839

MIC

Channel 1: 5660
Channel 2: 5700
Channel 8: 5745

Camera

Sensor 1/3.2'' CMOS; Effective Pixels: 4 M
Lens 2.1 mm, f/2.1
Shutter Rolling shutter
ISO 100-25600
FOV 150°(D); 122°(H); 93°(V)
Dimension 22.1×21.1×20.1 mm
Weight 8.2 g

Includes

1x Camera
1x Air Unit Module
2x Air Unit Antenna (MMCX Elbow)
1x Coaxial Cable
1x Air Unit 3in1 Cable

DJI FPV Air Unit (Original Model) Compatible with DJI Goggles v1/v2/integra/Goggles2
