Pre-orders to secure your order.
Our new stock is expected to arrive around October 1st.

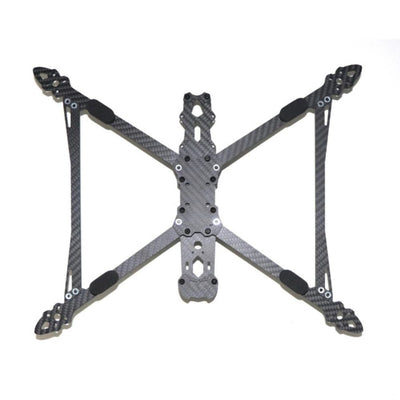

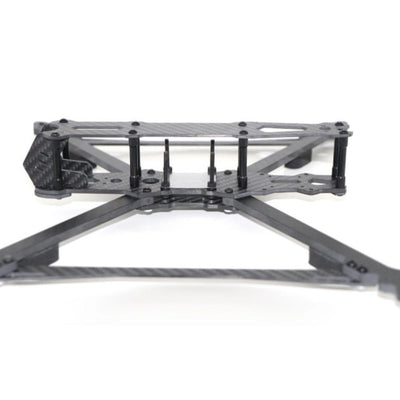

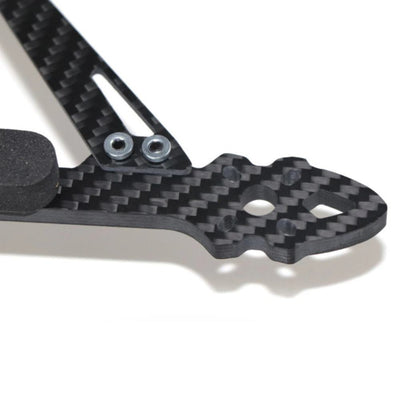

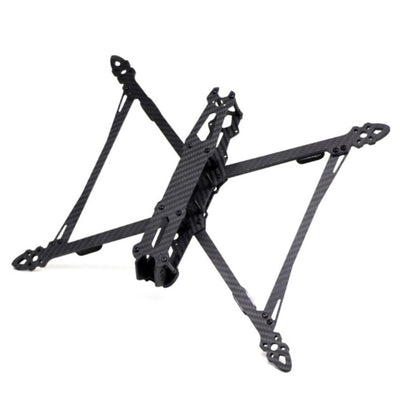

Mark4 10" V2 is a carbon frame suitable for building large 10" long-range drones. The frame has a diagonal motor spacing of 473mm and massive arms made of 7.5mm thick carbon, which are interconnected for added frame rigidity. The frame is designed for Micro(19mm) size cameras. The camera is mounted in carbon sidewalls to protect it. The frame can accommodate stacks with mounting holes 30,5x30,5mm and 20x20mm. The rear of the frame then has space to locate a video transmitter. For the video transmitter there are mounting holes with spacing 30,5x30,5mm and 20x20mm. The motors can be used with both 16mm and 19mm M3 holes. The frame is designed for use with analog video transmission. However, more experienced drone builders can get digital video transmitters into it without much difficulty.

Specifications:

Motor diagonal distance: 427mm
Weight: 270g
Mounting holes for stack: 30,5x30,5mm M3 / 20x20mm M2
Mounting holes for VTX: 30.5x30.5mm M3 / 20x20mm M2
Mounting holes for motors: 16mm / 19mm
Arm thickness: 7.5mm
Top plate: 2mm
Bottom plate: 3mm
Camera size: Micro (19mm)

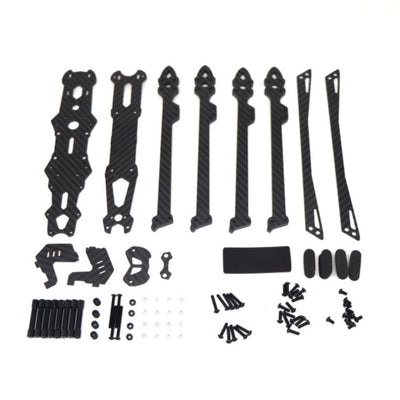

Package Includes:

1 x Mark4 V2 10 inch Frame Kit

Mark4 V2 10 inch Frame Kit
