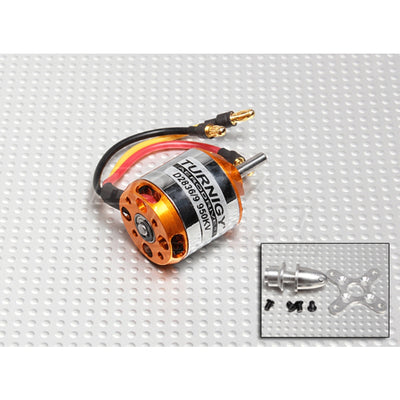

The Turnigy D2836/9 950KV Brushless Outrunner Motor is a high-efficiency electric motor engineered for mid-sized remote-controlled multirotors and airplanes. Combining durable construction with reliable performance metrics, this power plant delivers a strong thrust-to-weight ratio to extend airborne flight cycles.

Features

High-efficiency configuration engineered to optimize energy conversion and minimize battery drain during operation
Durable outrunner external housing format built to sustain rigorous outdoor operational loads
Wide multi-cell power support accommodating varied aerial configurations and specialized custom platforms
Delivers reliable, continuous performance suited for remote-controlled model builds up to 900 grams

Specifications

Battery: 2~4 Cell /7.4~14.8V
RPM: 950kv
Max current: 23.2A
No load current: 1A
Max power: 243W
Internal resistance: 0.070 ohm
Weight: 70g (including connectors)
Diameter of shaft: 4mm
Dimensions: 28x36m
Prop size: 7.4V/12x6 14.8V/9x6
Max thrust: 850g

Package Includes

1 x Turnigy D2836/9 950KV Brushless Outrunner Motor
