N.B: a Power Supply (sold separately) is needed to operate this charger.

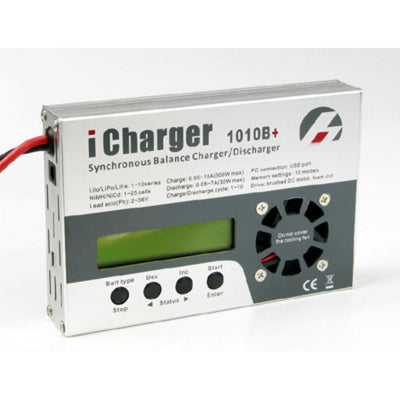

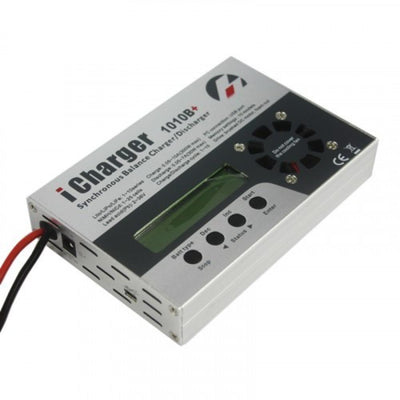

The iCharger 1010B+ is a high-performance, professional-grade charger built for demanding applications like FPV drones, RC aircraft, and electric vehicles. With support for up to 10S LiPo packs and a 300W output, it delivers fast, accurate charging with advanced safety and balancing features.

Features:

1.High power, high current, high-performance power conversion circuit. The iCharger series uses advanced Synchronous buck-boost DC/DC converter technology with an output conversion efficiency that can reach over 90%. This not only saves power and reduces heat build up but also makes the charger more compact and conveniently mobile.
2.The iCharger series can be used with three types of Lithium batteries - LiPo, Lilo, LiFe - and has a fully integrated cell balancer.
3.Internal temperature sensor and temperature controlled automatic cooling FAN controls the internal temperature and provides intelligent protection. When the internal temperature is over 60℃(140F), the output power is automatically reduced by 25%. If the temperature exceeds 65℃(149F) the charge cycle is stopped.
4.Convenient set of 10 battery profile memories that can be saved and loaded by number.
5.2x16 backlit LCD screen that provides rich information including active mode, current, voltage, total charge (mAh), charging time and temperature etc.
6.Various charging/discharging settings and cycles to meet a wide range of customer needs. For Lithium batteries: balance charging, normal charging, fast charging, storage, discharging, ext-discharging,charge/discharge cycling, and battery monitoring. For NiCd/NiMH batteries: charging-auto,charging-manual, discharging, charge/discharge cycling and forming charge. For Pb batteries: charging and discharging.
7.Up to 300w unique regenerative discharge capability. Regenerative discharge takes most of the output battery‘s energy and puts it back into the input battery, which is not the same with the traditional methods of discharge to deplete that energy in the form of heat across a transistor. That is, when you discharge your LiPo for storage, you will be re-charging your Lead Acid input battery. The amount of current and voltage that your input battery can accept limit the total amount of power that you can achieve, or 300W, whichever is lower.
8.Unique Lithium battery expanding discharge program. When you connect the external capacity resistance, you can use it as the maximum discharge power capacity—280W (@40V/7A).
9. Unique Lithium battery Monitor program. When you use other equipment to charge or discharge a Lithium pack, you can use the iCharger to monitor the per-cell voltages, battery temperature and process time. If any individual cell appears over-charged or over-discharged or the pack is too hot or the process has gone on for too long, the iCharger will generate an alarm sound and the related information will blink.
10.Electric motor test mode can be used to run-in electric motors, test motor parameters and performance,check tolerances etc.
11.Foam-cut drive. In this mode, the charger acts as a convenient power supply for a hot wire foam cutter.
12.Battery interior resistance measurement. The iCharger can not only measure the internal resistance of
the battery pack, and also can measure the per-cell internal resistance (only available for lithium battery).
13.Perfect protection. The iCharger has protection for reversed polarity (input or output), low input voltage,battery temperature, charging capacity and time overrun.
14.Support upgrading the hardware program by USB port. The iCharger also supports LogView software and can display, plot and analyze the charge and discharge data by it.

Specifications:

Maximum charge power capacity: 300W (when input voltage >13.5V)
Charge current range: 0.05-10.0A
Discharge current range: 0.05-7.0A

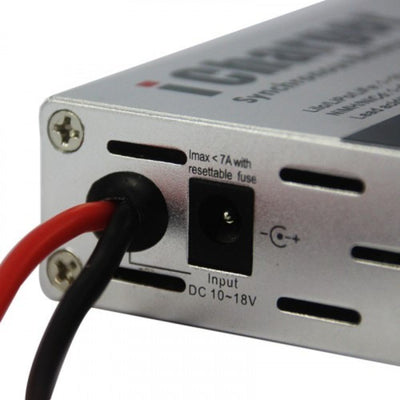

Input voltage range: DC 10-18V
Maximum discharge power capacity: 30W
Maximum external discharge power capacity: 280W
Current drain for balancing: 300mA
Balance accuracy: <10mV
LiPo/LiIo/LiFe: 1-10 series
NiCd/NiMH battery cell count: 1-25 series
Pb battery cell count: 1-18 series (2-36V)
Battery setup memories: 10
Intelligent temperature control: Yes
PC Connectivity: USB port
Weight: 410 g
Dimensions (LxWxD): 143x97x25 mm

iCharger 1010B+ 300W 10A LiPO 10s
