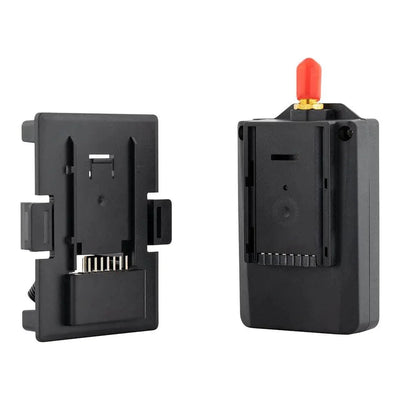

The RadioMaster 4IN1 external nano module, which is a multi-protocol module that integrates CC2500, NRF24L01, A7105 and CYRF6936 RF chips. This is external nano module can also be used on JR modules, with the included JR adapter.

RM 4IN1 is compatible with more than 70 RF protocols, including DSMX, Flysky, SFHSS, HiTec, HoTT, OMP, Radiolink, Frsky and many more. The module features a +20dBm RF gain, a 2.4GHz frequency band, and an operational voltage of 4.5-8.4V.

Designed for OpenTX and EdgeTX systems, the RM 4IN1 module allows the radio to connect with most mainstream protocols on the market. Though when this module is used in conjunction with a suitable EdgeTX or OpenTX compatible radios such as the TX16s, TX12 or Zorro, the RM 4in1 module can be used as a wireless trainer link to a student radio such as another TX16s, TX12, Zorro or any other radio capable of transmitting DSMX, Frsky or Flysky protocols.

Check out all our Radios/Modules/Receivers/Accessories Collection and the rest of our RadioMaster Products

Features:

Up to 20dBm power output
Compatible with more than 70 RF Protocols
Model compatibility: Alphabetical List (external link)
Wireless trainer function
JR adapter is included as standard. Support Zorro, Boxer, TX16S MKII, TX12 MKII and more.

Specifications:

Operational frequency: 2.4G ISM band (2400mHz - 2483mHz)
RF Chipsets: CC2500, NRF24L01, A7105 and CYRF6936
Dimension: 73x42x22mm (without antenna)
Weight: 30g (without antenna)
Operational voltage: 4.5-8.4V
Operational current:≈100mA
Item: RM 4IN1 Module
RF Gain: +20dBm

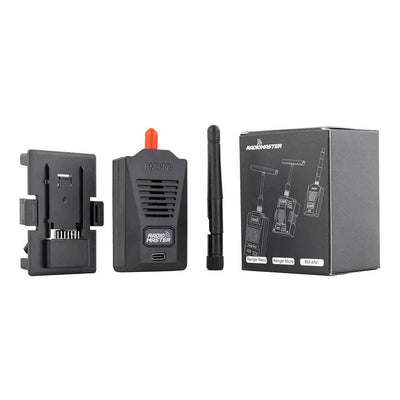

Packaged Includes:

1 x RM 4IN1 Module
1 x JR Adapter
1 x Stick Antenna

RadioMaster 2.4GHz 4IN1 Multi Protocol Module - Fits Micro/Nano Transmitter Slot
