RadioMaster continues to redefine the open-source remote control landscape. After years of collaboration with our open-source partners and users, we are proud to introduce the TX15. Driven by the high-performance STM32 H7 chip, it’s the powerhouse behind our fastest radio ever — enabling ultra-smooth EdgeTX control, instant model switching, and lightning-quick script execution. With 4GB of flash storage and MicroSD card expansion, you’ll have virtually unlimited space for models, scripts, sounds, and themes.

Check out all our Radios, Receivers and Modules Collection.

The TX15 features a LR1121 Semtech transceiver, supporting both 2.4GHz or 900MHz ExpressLRS (ELRS) for long-range, low-latency performance. Whether you're flying daily or operating in challenging RF environments, the TX15 is built to perform. A smart balance battery circuit maximizes flight time, while the compact, foldable antenna design improves portability and ensures strong signal quality. The built-in gyro with TiltX/TiltY functions unlocks advanced control options, allowing you to trigger switches, pan/tilt cameras, or activate telemetry callouts with a simple tilt of your radio.

Experience clear visuals on the 3.5-inch IPS touchscreen with 262k color resolution and 600 nits brightness, visible in sunlight. The TX15 Standard features V5.0 hall sensor gimbals in six vibrant colors. It's advanced cooling, a USB-C port for charging, SIM connectivity, firmware updates, and high-speed memory access ensure reliable performance. We’ve included additional switches so you can swap out the shoulder buttons with either a momentary or two-position latching switch—perfect if you prefer a traditional switch over a button.

N.B: Battery needed: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries are not included)

Features:

Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.
Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.
Precision Gimbals: V5.0 Hall sensor gimbals
Built-in ExpressLRS: 2.4GHz / Sub-G 900MHz ExpressLRS integration for reliable and long-range control.
Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time.
Powerful, Efficient Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.
Foldable Antenna: Compact and easy to store without compromising signal strength.
Built-in Microphone: For future feature expansion.
Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
Interchangeable Shoulder Switches: Customize your controls to match your flying style.
Optional colors: Iron Grey / Frost White / Iceberg Blue / Mint Mist / Lemon Twist Yellow / Hot Pink

Specifications

Item: TX15 Radio Controller
Size: 178*168*81mm
Weight: 605g (without battery)
Frequency: 2.400GHz OR Sub-G 900MHz
Internal RF: ELRS 2.4GHz / Sub-G 900MHz
Supported Protocols: Express-LRS
Cooling Fan: Yes
Transmitter Module: Built-in ELRS
Built-in Flash Size: 4GB
Built-in Microphone: Yes (Future expansion)
Built-in Gyro: Yes (ICM-42607-C)
MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
Antenna Gain: 2dB (transmit power adjustable)
Current: 875mA at max power output
Voltage Range: 6.6 - 8.4V DC
Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
Module Firmware: ExpressLRS
Channels: Max 16 channels (Receiver dependent)
Display: 3.5-inch IPS touchscreen (480 x 320 resolution)
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
Connectivity: USB-C
Gimbals: V5.0 Hall sensor gimbals (standard)
Gimbal Sticks: M4
Upgrade Method: USB-C (UF2)
Module Bay: JR-compatible module bay for additional modules

User Manual

TX15 User Manual

Package Includes:

1 * TX15 Radio Controller
1 * Signature Carry Case
1 * Short 2-position Latching Shoulder Toggle Switch Assembly
1 * Short 2-position Momentary Shoulder Toggle Switch Assembly
1 * 18650 Battery Tray
1 * USB-C Cable
1 * Screen Protector
1 * 1.5mm Hex Wrench
4 * High Tension Gimbals Springs
2 * Gimbal Stick Set Screw
1 * Stickers Set
1 * User Manual
1 * Inventory Card

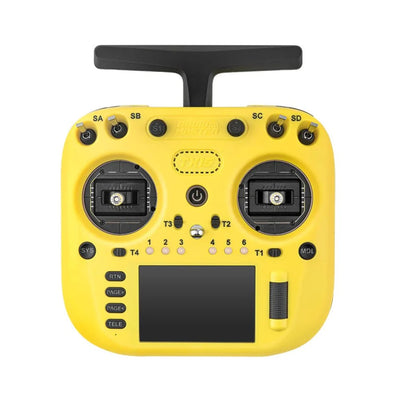

PRE-ORDER RadioMaster TX15 M2 ELRS 2.4GHz/900MHz 3.5-inch Touchscreen Display V5.0 Hall Sensor Gimbals Radio Controller - Yellow
