N.B: Battery needed: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries are not included)

Check out all our Radios, Receivers and Modules Collection.

Jumper T14 is a radio suitable for beginners and advanced pilots. The radio uses EdgeTX firmware and has 1W ELRS module on 2.4GHz.The radio is 185x175x79mm in size, which is comparable to radios such as TBS Mambo or Radiomaster Boxer. Even at this size, it uses large hall metal CNC gimbals. The Jumper T14 will provide 4 switches, 2 buttons and two potentiometers. There are also joysticks on the radio for trim adjustment. It has a folding swivel antenna for easier transport. All information is displayed on a large 2.42" OLED display, which is easy to read even outdoors in the sun. A great advantage is the integrated memory, which replaces a conventional SD card, greatly increasing the reliability of the radio.

On the back we find a folding handle for easy transport and a standard JR shaft for expansion with external modules, a fan for active cooling of the ELRS module, thanks to which up to 1W of power is supported, and a battery shaft. The shaft can accommodate two Liion batteries (not included) of size 21700, which will noticeably extend the battery life. The batteries are conveniently charged via the USB-C connector. The Jumper T14 supports 10W charging power.

A great advantage of the radio is the aforementioned integrated ELRS module with a power output of up to 1000mW and a refresh rate of up to 1kHz. The ExpressLRS (ELRS for short) is an open source project and the transmit and receive modules are produced by multiple manufacturers. ELRS is currently one of the most advanced RC transmissions. It offers reliable long distance link, high refresh rate, adjustable power, update via wifi and more. ELRS at 2.4GHz outperforms conventional RC systems in every way while maintaining short antennas.

Features:

Superior Heat Dissiaption: Built-in ELRS 2.4G/915MHz IW module with cooling fan
VS-M CNC Hall Gimbals: Maximum pricesion and responsiveness
Customizable buttons and switches: accommodate different preferences and habits
Exquisite details embody and excellent every quality
Bi-directional foldable antennas: Reserved antenna modification hole for personalized use
2.42 inch extra-large OLED display: clear and detailed display, easy to read and navigate
Excellent grip, ergonomic design

Specifications:

MCU:STM32F407ZET6
Screen size:2.42''(resolution 128x64)
Display method: OLED
Gimbal Size: Standard
CNC Hall Sensor Gimbals
Built-in RF:ELRS 2.4GHz
Transmission power: 1000mW(max 30dBm)
External module interface: standard JR module slot
TF card: built-in chip officially recommended by Edgetx
Work Voltage:9-8.4v
Battery: 21700 x 2
Size: 185x175x79mm
Weight: 471g

Package Includes:

1 x Jumper T14 VS-M CNC HALL Sensor Gimbals Radio.

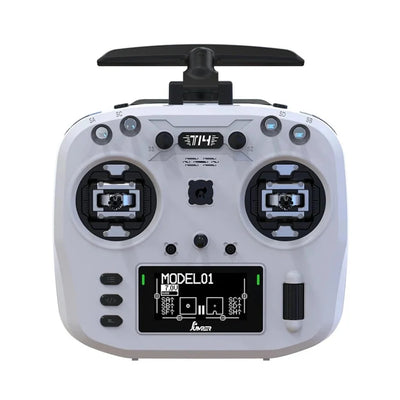

PRE-ORDER Jumper T14 Macarone ELRS 1W 2.4GHz VS-M HALL Sensor Gimbals 2.42" OLED Screen EdgeTX RC Radio Transmitter - White
