The GEPRC SPEEDX2 1104 7500KV motor is a high-performance brushless motor designed for micro micro-drones and cinewhoops. Constructed with an integrated CNC aviation aluminum alloy shell, high-precision NSK/NMB bearings, and a 9N12P stator assembly, it offers extreme durability, smooth operation, and immediate throttle responsiveness on 2S–3S LiPo power setups.

Features:

High-speed 7500KV power output tuned for micro-drone responsiveness
CNC integrated high-precision aviation aluminum alloy shell weighing only 5.2g
Built with N52H magnets and multi-strand copper winding for efficient power delivery
Equipped with NSK/NMB high-precision bearings for smooth vibration-free operation
Compact 9N12P slot-type stator configuration designed for 1.6 to 2.2-inch props

Specifications:

Model: SPEEDX2 1104 7500KV Motor
KV: 7500KV
Configuration: 9N12P
Magnet: N52H
Input Voltage: 7.4V–11.1V (2S–3S LiPo)
Max Wattage: 155W
Peak Current: 13.2A (3S)
Interphase Resistance: 150mΩ
Bearing Type: NSK / NMB
Stator Dimension: Φ14.5 x 11.5mm
Shaft Diameter: Φ1.5mm
Shaft Protruding Length: 4.95mm
Mounting Pattern: 4-Φ9mm
Wire Lead: 60mm / 28AWG
Recommended ESC: 20A
Weight: 5.2g ±0.2g (including wires)
Suitable Propeller Size: 1.6 to 2.2 inch

Package Includes:

4 x SPEEDX2 1104 7500KV Motor

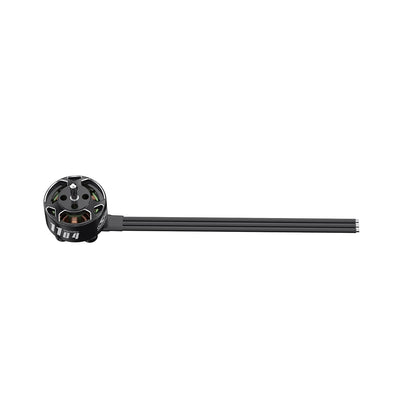

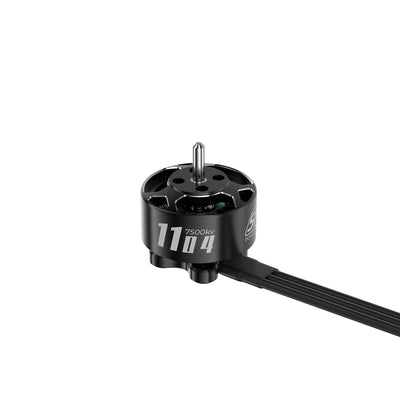

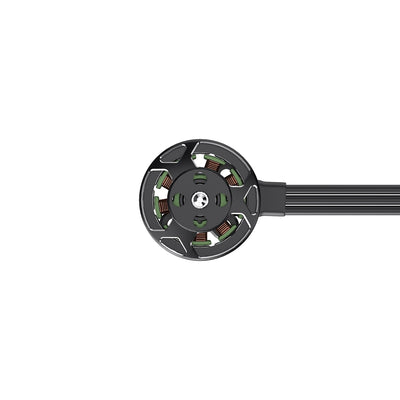

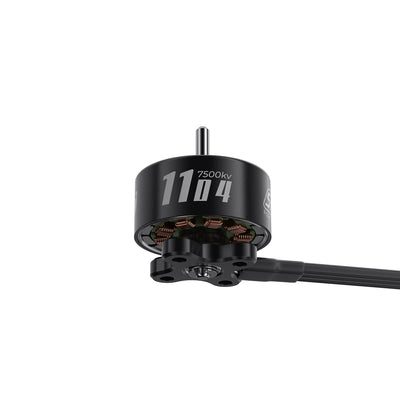

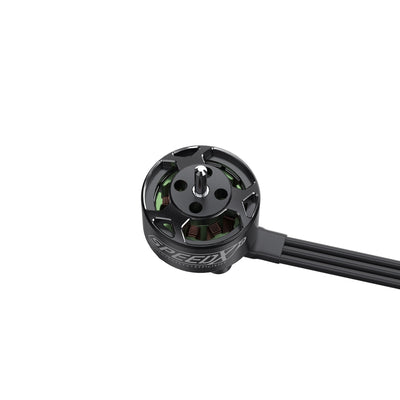

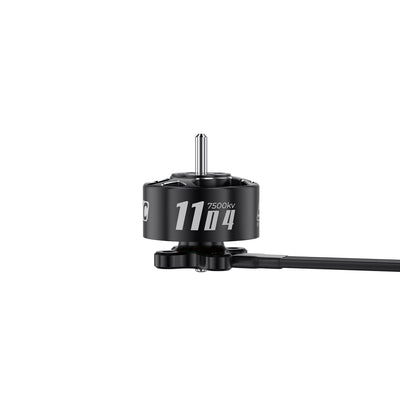

(PRE-ORDER) GepRC SPEEDX2 1104 7500KV Motor Set for 1.6"-2.2" Drones, DarkStar22 (4 x Motors)
