The HD VTX ushered in a new upgrade, and the brand new VTX of DJI O3 air unit pushed the digital system to a new level. The GEPRC team is also upgrading and optimizing the overall performance on the basis of MARK5. At the same time, it will be equipped with DJI O3 air unit to design the new MARK5 O3 version.

The newly upgraded camera aluminum alloy side plate, 7075-T6 aluminum alloy is strong and durable. It can be fully adapted to DJI’s new O3 air unit camera, with a field of view (FOV) of 155°, and can support up to 4K 60FPS recording. We also specially designed TPU soft printing parts for the O3 VTX module, and equipped with air inlet cooling port, which is conducive to adequate heat dissipation at the air unit. GEP-MK5 O3 Pro is shipped with two different camera mounts, which can be mounted with a full range of GP action cameras, as well as Naked camera GP 8/10, Insta 360 GO2 and Caddx Peanut, etc. to record beautiful moments for your flight.

This time, MARK5 O3 will broaden your horizons, fly beyond what you have ever seen, and bring more possibilities for FPV creation.

Features

1. Upgraded lens aluminum alloy side plate, durable and more visual impact
2. Developed specifically for freestyle with squashed X arm design.
3. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment
4. With independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter
5. Two kinds of 3D printing camera mounts are designed, which can be mounted with a full range of GP cameras, as well as Naked camera GP 8, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear
6. Add coral orange and emerald green colors to the O3 version to add more colors to your flight
7. MARK5 O3 is optimized for freestyle, with a smoother flight experience

Specifications

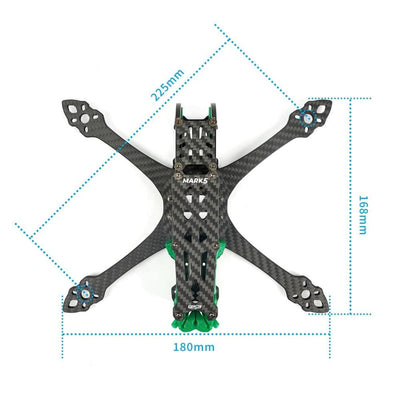

Wheelbase: 225mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 5mm
FC mounting holes: 30.5mm x 30.5mm
Camera installation space: 20mm
Suitable propeller size: 5″propeller
Dimension: 214mm x 168mm x 42mm
Standard Version Weight: 141.9g

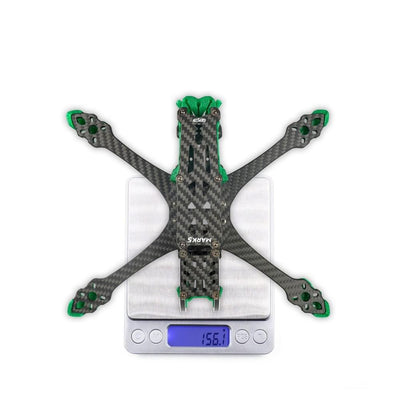

Pro Version Weight: 156.1g

Package Includes:

1 x GepRC Mark5 Pro Squashed X Freestyle Frame Kit - Green (Frame Only)
