F722 Flight Stack Support Bluejay firmware, bidirectional DSHOT, Using large solder pads, the pads are kept away from the components to ensure perfect soldering for beginners, F722 main control chip, onboard OSD chip, barometer are also available, even in complex flight environments.

F722 Features:
1. Open-source Betafight Flight Controller
2. High Configuration: STM32F722RET6 master, ICM42688 gyroscope,
SPL06-001 barometer
3. optimization of PCB layout alignment, to achieve the perfect
4. Built-in OSD module, one-step parameterization.
5. Standard sockets and pads all lead out, convenient for users with different needs.
6. 4in1 ESC adopts MOS with high cost performance, which hasgood current resistance and long durability, good stability.
7. High-performance processor can support DSHOT600 protocolat most, and the accelerator is smooth and powerful.
8. Support Bluejay firmware, bidirectional DSHOT

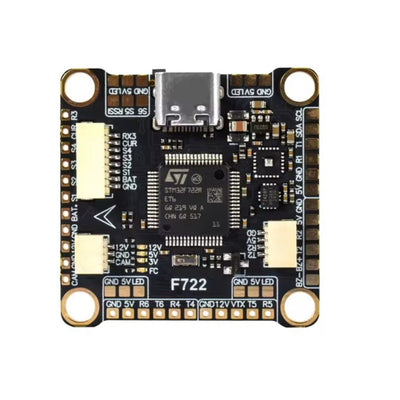

F722 Flight Control Specifications:

Master chip: STM32F722RET6
Gyroscope: ICM42688
Battery: 3-8S
USB: Type-C
Barometer: BMP280
OSD chip: AT7456E
Bluetooth: Not Supported
RSSI: Support,marked as RSSI
Support flight control firmware: Beataflight
Firmware Name: DAKEFPVF722
Installation hole position: 30.5x30.5mm/M4
Size: 36mm x36mx8m
Weight: Bare board 8g
iNav: support
Ardupilot: Not support
405 and 743: Support
Allows connection to DJI 04
GPS module: requires ubbox protocol support to allow connection

60A ESC Specifications:

MCU: EFM8BB21F16G-C-QFN20R
Specifi cations: 60A
Program: BlueJay
MOS: 5C430
Continlous crent: 60AX4
Transient curent: 65A-10S
TVS protection diode: have
Electrolytic capacitor: 1000uF Low ESR Capacitor
Motor protocol: Dshot300/600
Battery imput: 3-8S Lipo
Ameter: support
Power Output: VBAT
Installation hole position: 30.5x30.5mm/M4
Size: Length 43x37x7mm
Weight: Bare board 12g

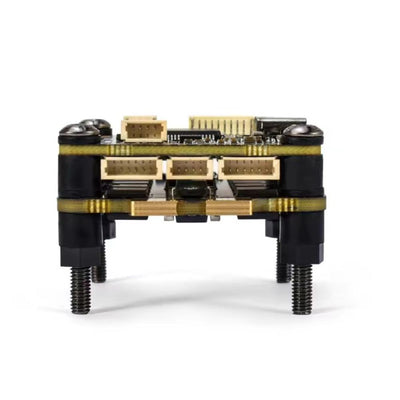

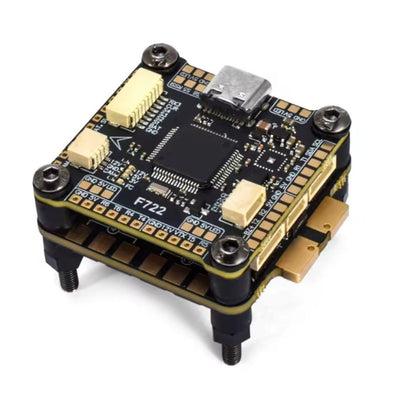

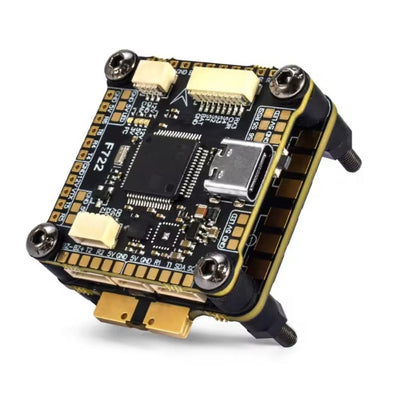

F7 Stack 60A with F722 Flight Controller and 60A ESC 3-6S - 30.5x30.5mm
