DJI Goggles 3 is compatible with:

DJI FPV Remote Controller 3
DJI RC Motion Controller
DJI O4 Air Unit / O4 Pro
DJI Mini 4 Pro
DJI Avata 2
DJI RC-N2
DJI RC 2
DJI Air 3

The DJI Goggles 3 feature Real View PiP (Picture-in-Picture), allowing you to observe your surroundings without removing the goggles for enhanced safety and immersion. With its micro-OLED high-definition display and ultra-low-latency transmission, the world comes into view with stunning clarity.

Check out all our FPV Goggles+Accessories and the rest of our DJI Products!

O4 Video Transmission, Compatible with Air 3 and Mini 4 Pro

With Avata 2, O4 video transmission delivers ultra-low latency at 24 ms and a high bitrate of 60Mbps. Also compatible with Air 3 and Mini 4 Pro, the reliable O4 HD transmission offers crystal-clear and fluid first-person views.

Real View PiP, Safety in Sight

Without removing your goggles, you can now conveniently observe your surroundings to get enhanced flight safety.

All-Around Comfort and Convenience

Dazzling Upgrades: Enjoy a 1080p Micro-OLED screen with a refresh rate of up to 100 Hz*, alongside the TüV Rheinland Low Blue Light Certification. Accommodates diopter adjustments from -6.0 D to +2.0 D for nearsighted and farsighted users.

Battery and Headband Integration: The lightweight, comfortable design that integrates the headband liberates you from tangled cables and offers a lengthy 3-hour operating time.**

One-Tap Defogging: With defogging enabled, you get a convenient solution for sudden changes in temperature or high-humidity conditions.

More Fun with Wireless Streaming

Stream your flight in real-time on the DJI Fly app of your smartphone via Wi-Fi connection.***

You can also import panoramic and 3D videos onto an SD card and play them back using Goggles 3 for an immersive experience that seems almost within reach.

Features:

DJI O4 compatible
Ultra-Low Latency Transmission
Real-View Picture-In-Picture
Micro-OLED HD Display
DJI Goggles 3

Specifications:

GOGGLES

Operating Temperature: -10°C to 40°C (14°F to 104°F)
Supported SD Cards: microSD (up to 512 GB)
Diopter Adjustment Range: -6.0 D to +2.0 D
Weight: Approx. 470 g (battery included)
Resolution (single screen): 1920×1080
Screen Size (single screen): 0.49 inch
Video Recording Format: MOV
Power Input: Built-in battery
Refresh Rate: Up to 100 Hz
FOV (single screen): 44°
Real View FOV: 44°
Model: TKGS3
Supported Video and Audio Playback Formats
- 3D Video: Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU)
- Panoramic Video: Spherical 2D panoramic videos
- Video coding formats: H.264, H.265
- Max Video Specification: 4K/60fps
- Audio formats: AAC, PCM
Dimensions (L×W×H)
- With antennas folded: 170×109×112 mm (L×W×H)
- With antennas unfolded: 205×109×112 mm (L×W×H)
- Interpupillary Distance Range: 56-72 mm

VIDEO TRANSMISSION

Max Transmisssion Distance:13 km (FCC); 10 km (CE/SRRC/MIC)
Max Video Bitrate: 60 Mbps
Latency with DJI Avata 2:
- 1080p/100fps video transmission quality: latency down to 24 ms
- 1080p/60fps video transmission quality: latency down to 40 ms
Transmitter Power (EIRP): 2.4 GHz
- < 20 dBm (CE/SRRC/MIC)
- < 33 dBm (FCC)
5.1 GHz
- < 23 dBm (CE)
5.8 GHz
- < 30 dBm (SRRC)
- < 33 dBm (FCC)
- < 14 dBm (CE)
Operating Frequency
- 2.4000-2.4835 GHz
- 5.150-5.250 GHz
- 5.725-5.850 GHz

BATTERY

Max Charging Power: 20 W (charging when powered off)
Charging Temperature: 0° C to 50° C (32° F to 122° F)
Dimensions: 121×65×52.5 mm (L×W×H)
Chemical System: LiNiMnCoO2
Runtime: Approx. 3 hours
Capacity: 3000 mAh
Voltage: 5.6-8.4 V
Energy: 21.6 Wh
Category: Li-ion

WIFI

Protocol: 802.11 a/b/g/n/ac
Transmitter Power (EIRP): 2.4 GHz
- < 20 dBm (FCC/CE/SRRC/MIC)
5.1 GHz
- < 20 dBm (FCC/CE/MIC)
5.8 GHz
- < 20 dBm (FCC/SRRC)
- < 14 dBm (CE)
Operating Frequency
- 2.4000-2.4835 GHz
- 5.170-5.250 GHz
- 5.725-5.850 GHz

BLUETOOTH

Operating Frequency: 2.400-2.4835 GHz
Transmitter Power (EIRP): < 10 dBm
Protocol: Bluetooth 5.0

GFSK

Operating Frequency: 2.4000-2.4835 GHz
Transmitter Power (EIRP)
- < 20 dBm (CE/SRRC/MIC)
- < 26 dBm (FCC)

Compatibility:
- DJI FPV Remote Controller 3
- DJI RC Motion Controller
- DJI O3 Air Unit (SOON, according to DJI)
- DJI Mini 4 Pro
- DJI Avata 2
- DJI RC-N2
- DJI RC 2
- DJI Air 3

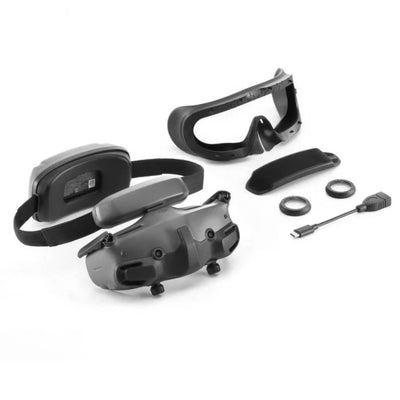

Package Includes:

1 x DJI Goggles 3 -2.0D Corrective Lenses (Pair)
1 x DJI Goggles 3 Additional Forehead Pad
1 x DJI Goggles 3 Foam Padding
1 x USB-C OTG Cable
1 x DJI Goggles 3
