N.B: ELRS PWM Receivers can also output SBUS/CRSF so can be used for Drones with Flight Controllers besides having PWM outputs for Airplanes/Cars.

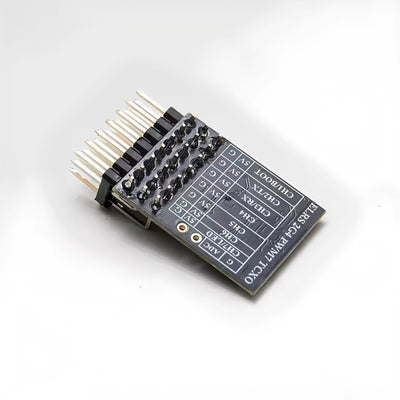

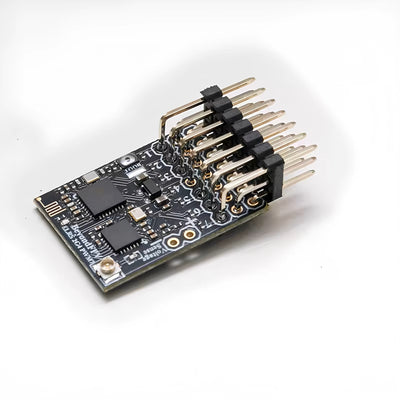

The BeyondFPV ELRS 2.4G 7-Channel PWM Receiver is a high-performance, ultra-lightweight control solution engineered for ultimate flexibility across multiple RC platforms. This versatile receiver features dual-mode functionality, natively supporting direct PWM servo outputs as well as digital CRSF (Crossfire) and S.BUS protocols. Whether you are building traditional fixed-wing airplanes requiring independent servo control, or configuring high-performance drones equipped with advanced flight controllers, this receiver adapts seamlessly to your wiring and telemetry needs.

Check out all our Radios, Receivers and Modules Collection.

Features

Seven independent PWM channel outputs designed for precise multi-functional control of surface servos and motor ESCs.
Dual-protocol support allows seamless switching between PWM and CRSF digital outputs without re-flashing the firmware.
Integrated Temperature Compensated Crystal Oscillator ensures exceptional timing accuracy and robust link stability across varying environmental temperatures.
Built-in high-voltage battery telemetry mapping supports direct external voltage sensing up to 34V max.
Compact and featherlight structural footprint makes it perfect for gliders with constrained electronics bays, such as DLGs and high-performance slopers.
Onboard Wi-Fi capability enables quick configuration modifications, firmware updates, and hardware setup via a standard web browser interface.

Specifications

Frequency Range: 2.4GHz ISM
Firmware: Generic_ESP8285_7xPWM_2.4G_RX
Input Power Supply: DC 4.5V – 8.4V
Output Channels: 7-Channel PWM or CRSF digital protocol
Telemetry Return Power: 12dBm
Voltage Sensing Range: 34V Max
Antenna Connector Type: IPEX MHF1 / U.FL
Physical Weight: 1.6 grams
Dimensions: 26mm × 19mm

Package Includes

1 × BeyondFPV 2.4GHz 7-Channel PWM ExpressLRS Receiver
