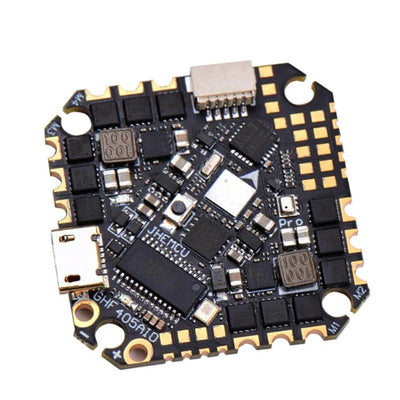

In this design, AIO integrates the flight control and four-and-one ESC, and uses high-density BGA as the main control chip to increase the integration level and make it perfect.

ESC output current 40A continuous current, 4 independent current outputs

Specifications:

- The USB port is installed on the side with a built-in USB ESD chip
- All signal ports add protection buffer components
- Imported originals, stable quality

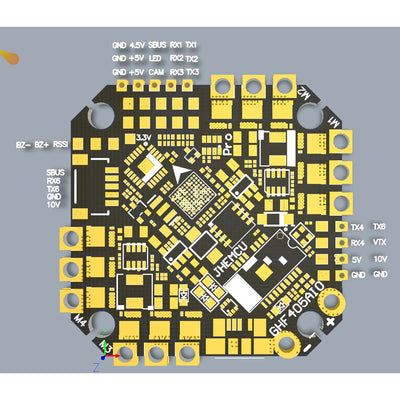

- Reserved common functional interface pads, 5 UART ports (UART1, UART2, UART3, UART4, ART6).
- Half-hole motor pad, support high current output
- Integrated Betaflight F405 processor flight controller, OSD BEC 5V/2.5A and 10V/2A, support 3-6S battery

FLIGHT CONTROL PARAMETERS

CPU: STM32F405
Gyro Sensor: ICM42688P
Size: 33* 33mm (25.5mm mounting hole)
Firmware version: Betaflight JHE405
Black box: support
Barometer: Support
OSD: Support
IIC: Support
UART: support, UART1: receiver, UART6: DJIVTX/IRC/Smart Audio
BEC: BEC 5V/2.5A and 10V/2A

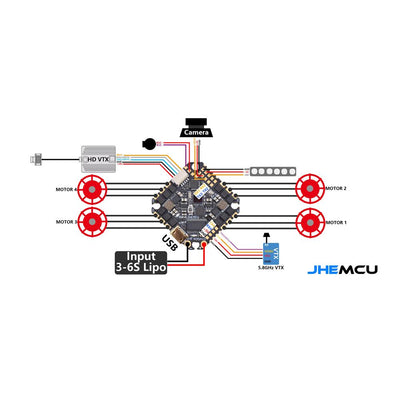

DJIVTX: Support, reserved special socket, equipped with plug wire.

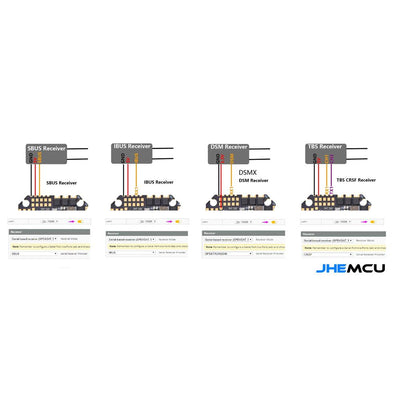

Receiver: SBUS, IBUS, DSM2, DSMX, TBS, etc.
Support WS2812 programmable LED
Support buzzer
Built-in voltage and current sensors
Weight: 7.1 grams

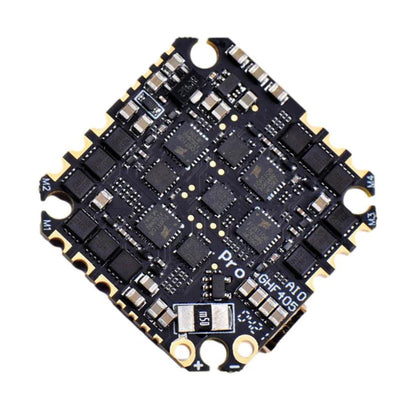

ESC PARAMETERS

Bluejay
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 3S-6S Lipo
Continuous current: 40A (two models are optional)
Firmware: Bluejay G_H_30_48k.HEX

Package Includes:

1 x JHEMCU GHF405 Bluejay 40A 3-6S AIO Whoop Flight Controller

JHEMCU GHF405 PRO Bluejay 40A 3-6S AIO Whoop Flight Controller
