This 55A ESC Support Bluejay firmware, bidirectional DSHOT, Using large solder pads, the pads are kept away from the components to ensure perfect soldering for beginners.

Checkout all our Stacks Collection.

55A ESC Specifications:

MCU: EFM8BB21F16G-C-QFN20R
Specifications: 55A
Program: BlueJay
MOS: 3109
continuous current: 55A x 4
Burst current: 60A for 10S
TVS protection diode: have
Electrolytic capacitor: 1000uF Low ESR Capacitor
Motor protocol: Dshot300/600
Battery input: 3-6S Lipo
Amp-meter: supported
Power Output: VBAT
Installation hole position: 30.5x30.5mm/M4
Size: Length 43x37x7mm
Weight: Bare board 12g

Package Includes:

1 x 55A 3-6S 4in1 ESC with BlueJay Firmware - 30.5x30.5mm

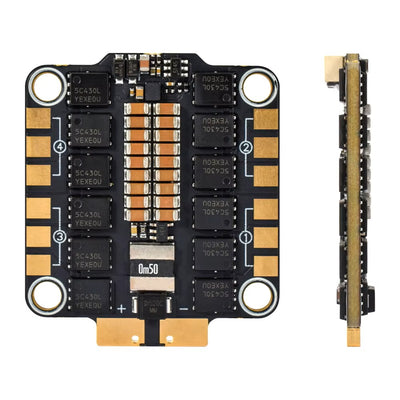

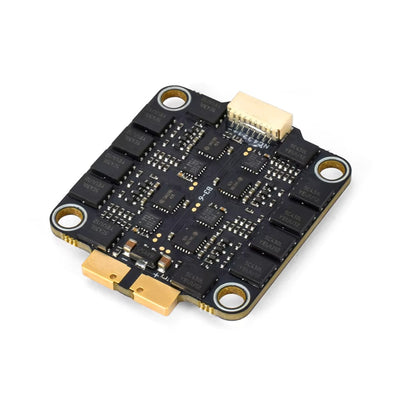

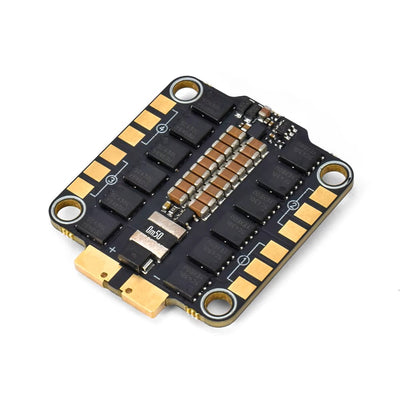

55A 3-6S 4in1 ESC with BlueJay Firmware - 30.5x30.5mm
